X034

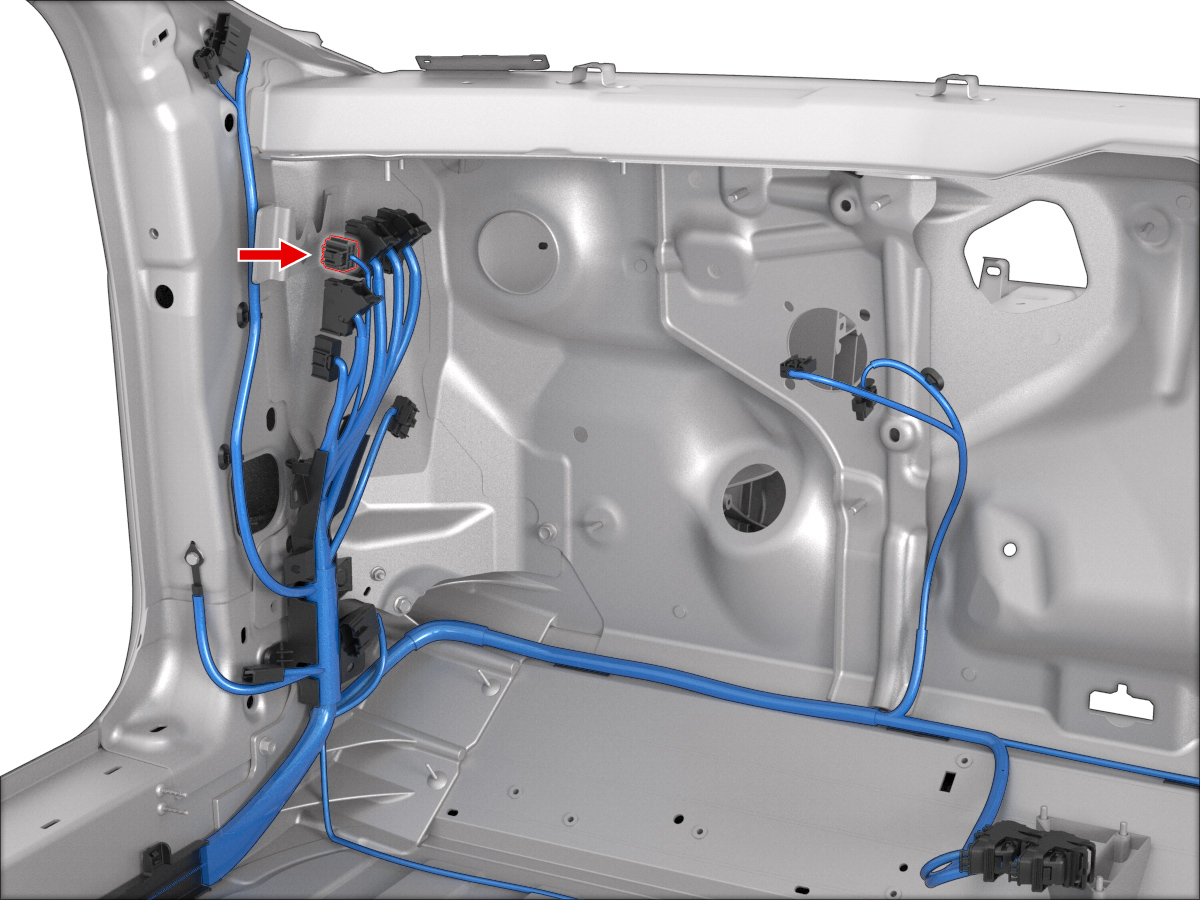

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | SUMITOMO | 8240-4932 | 4.8x0.8F | VT | 2.50 | X901F | 2 | ||
| 3 | SUMITOMO | 8240-4932 | 4.8x0.8F | RD | 3.00 | X1000 | 6 | ||
| 4 | |||||||||
| 5 | |||||||||
| 6 |
