X201

Tesla Part Number

1475379-00-A

Connector

BOSCH 1928406051

Color

BK

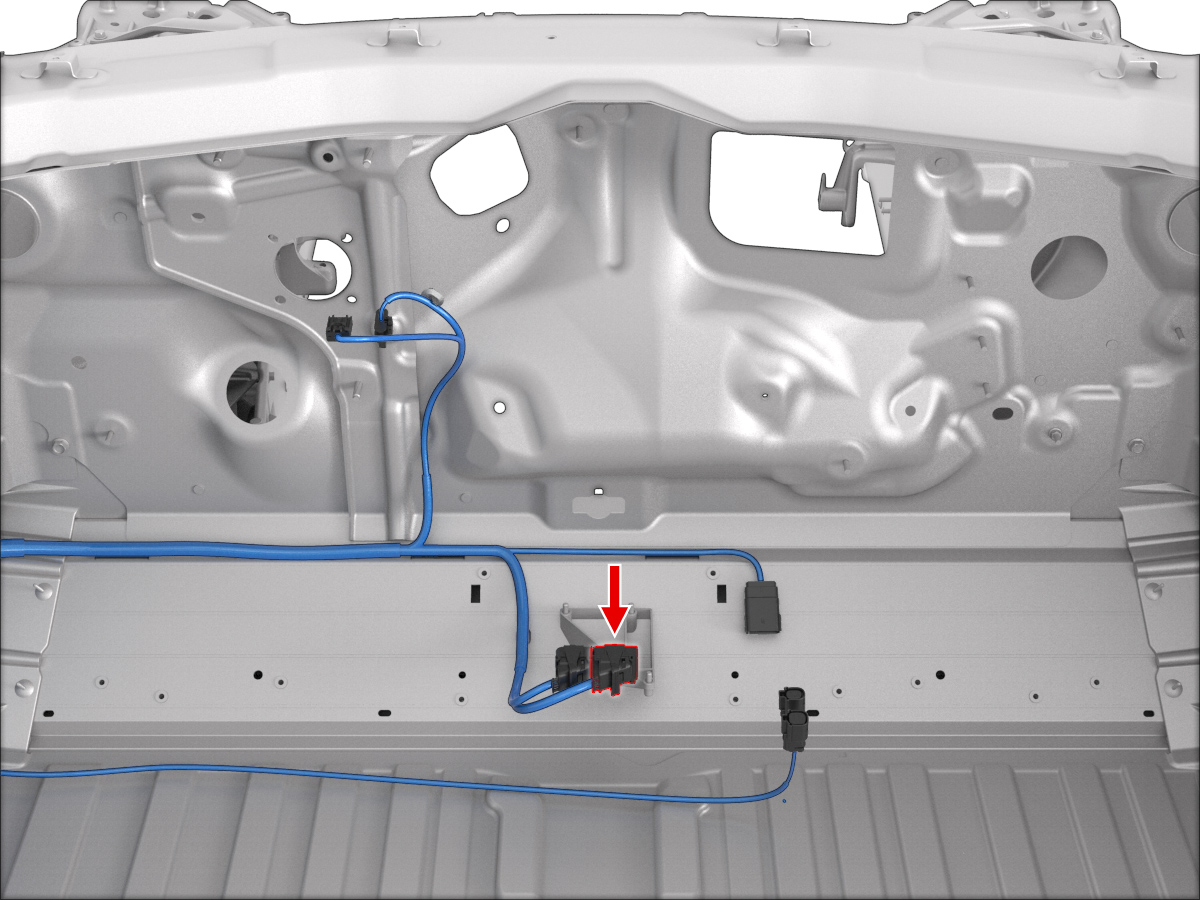

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X987M	1
2	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X987M	2
3	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X230	2
4	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X230	1
5	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X030A	24
6	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X030A	11
7	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X030A	10
8	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X030A	23
9	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X976F	14
10	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X976F	15
11	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X231	2
12	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X231	1
13
14
15	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X987M	14
16	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X987M	13
17	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X233	1
18	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X233	2
19	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X975F	10
20	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X975F	11
21	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X217	2
22	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X217	1
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X987M	12
38	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X987M	11
39	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X206	1
40	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X206	2
41	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X976F	7
42	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X976F	6
43	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X945M	22
44	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X945M	23
45	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X031	44
46	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X031	29
47	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X986M	7
48	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X986M	8
49
50
51
52
53	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130
54	BOSCH	1928499468	0.50x0.40F	GN/WH	0.35	TESLA	MAT-110-130
55	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G660	1
56	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X954F	15
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X030A	1
72	BOSCH	1928499468	0.50x0.40F	YE/WH	0.35	TESLA	MAT-110-130	X030A	13
