X039

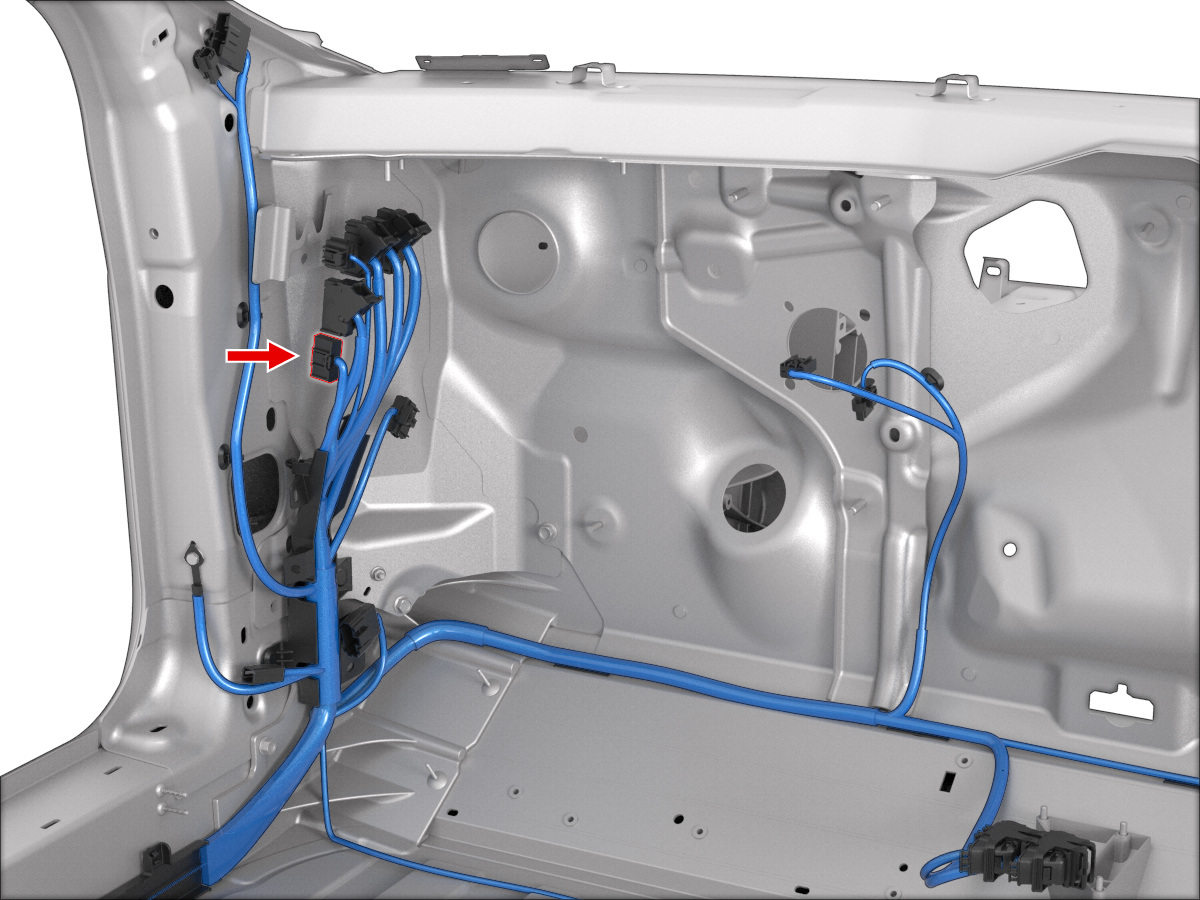

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0215 | 1.5x0.64F | GN | 0.50 | X935M | 18 | ||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X983F | 5 | ||
| 3 | |||||||||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.35 | X983F | 15 | ||
| 5 | |||||||||
| 6 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.35 | X968M | 13 | ||
| 7 | |||||||||
| 8 | |||||||||
| 9 | |||||||||
| 10 | |||||||||
| 11 | SUMITOMO | 8100-3625 | 0.64x0.64F | GY | 0.35 | X935M | 17 | ||
| 12 | |||||||||
| 13 | |||||||||
| 14 | SUMITOMO | 8240-0215 | 1.5x0.64F | WH | 0.50 | X362 | 4 | ||
| 15 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD | 0.50 | X935M | 10 | ||
| 16 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X982F | 7 | ||
| 17 | |||||||||
| 18 | |||||||||
| 19 | |||||||||
| 20 | |||||||||
| 21 | |||||||||
| 22 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.35 | X975F | 5 | ||
| 23 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.35 | X975F | 6 | ||
| 24 | |||||||||
| 25 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X975F | 4 | ||
| 26 | SUMITOMO | 8240-0215 | 1.5x0.64F | GN | 0.50 | X362 | 3 |
