X909M

Tesla Part Number

1849225-00-B

Connector

KSE K30M31011

Color

NA

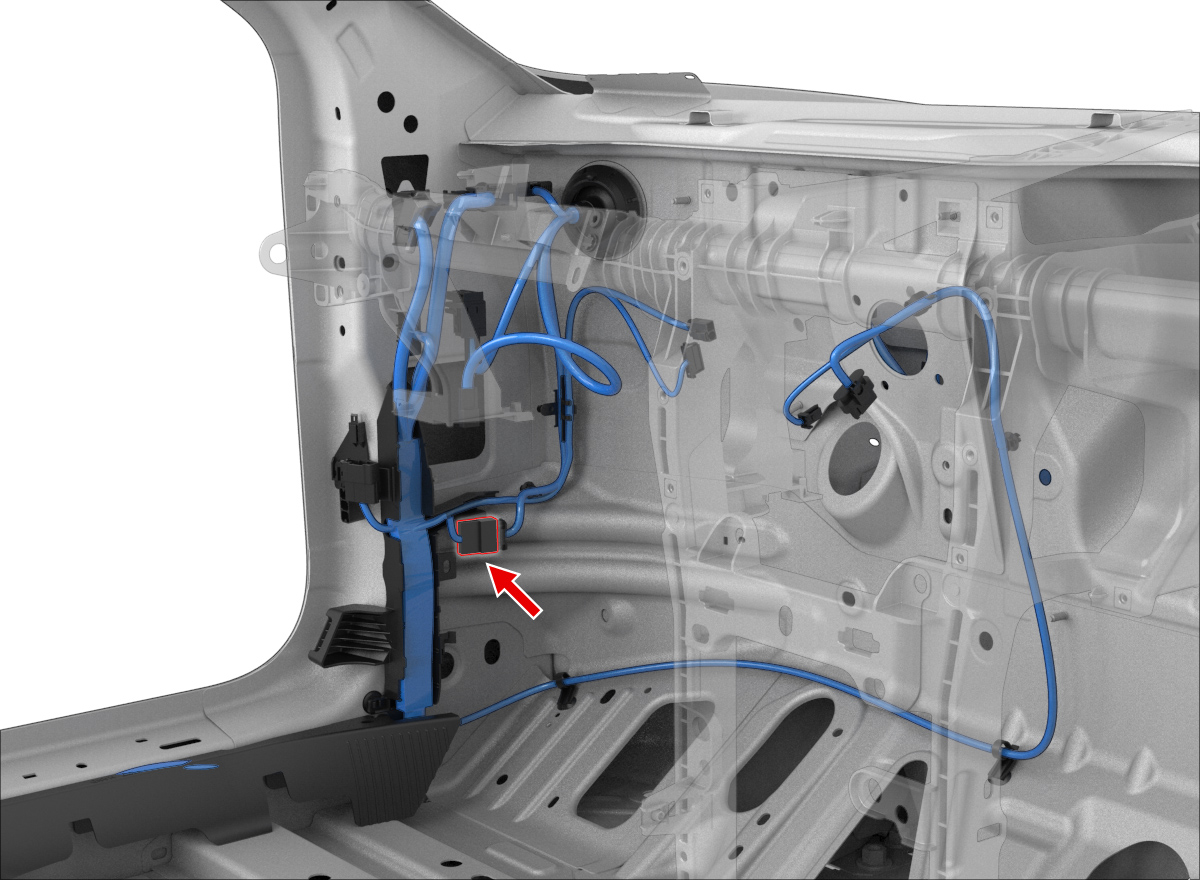

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X486	6
3	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X486	5
4	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X201	46
5	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	45
6
7
8
9	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X201	8
10	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X201	7
11
12
13	SUMITOMO	8100-3623	0.64x0.64M	YE/LTBU	0.35			X031	29
14	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X031	30
15
16
17
18	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X201	5
19	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	6
20
