X299

Tesla Part Number

1100844-00-A

Connector

AMP 2141404-1

Color

BK

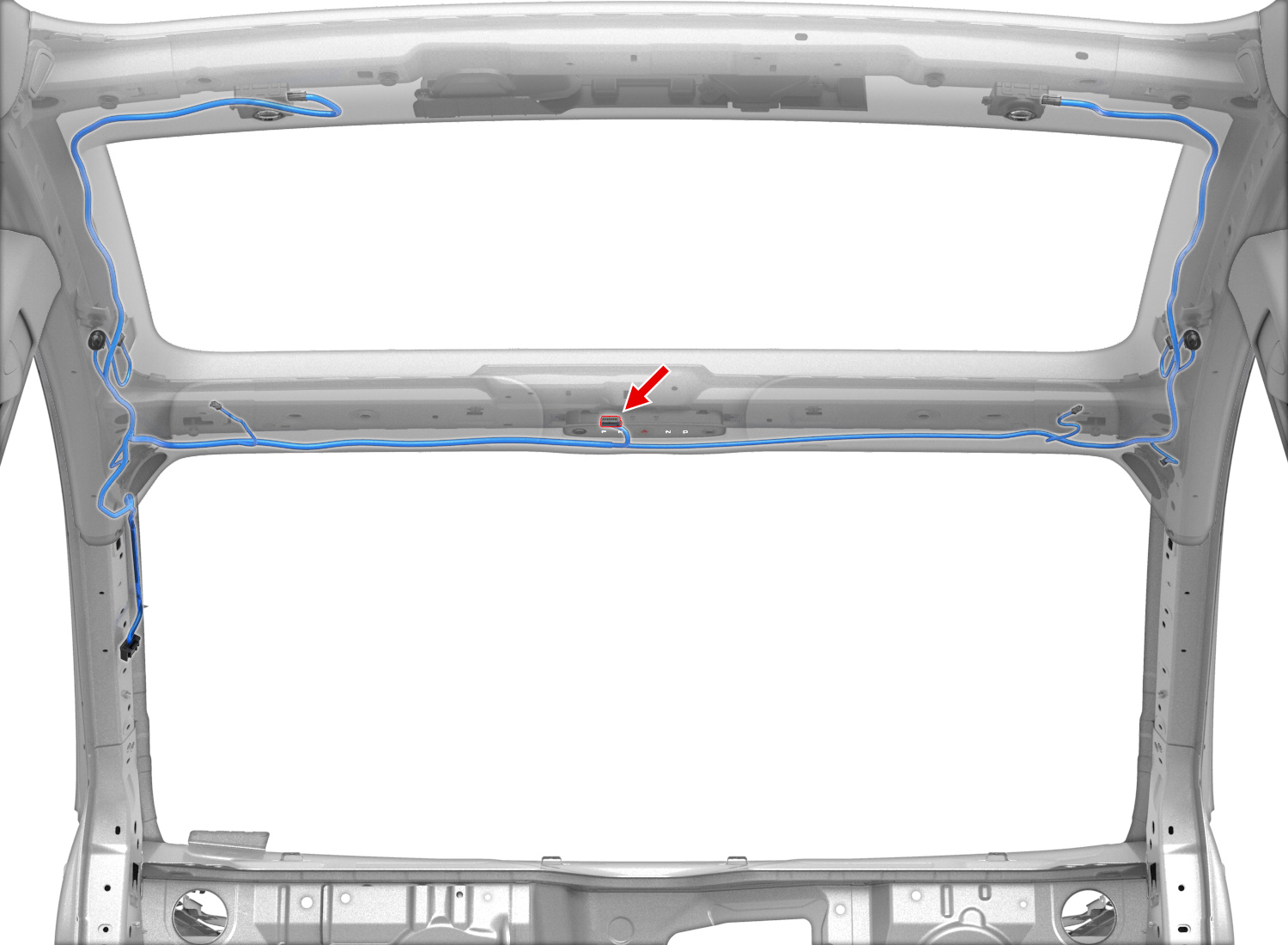

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	2-1703930-1	0.50x0.40F	RD	0.35			X981F	13
2
3	AMP	2-1703930-1	0.50x0.40F	YE	0.35			X290	1
4	AMP	2-1703930-1	0.50x0.40F	BU	0.35			X289	1
5	AMP	2-1703930-1	0.50x0.40F	GN	0.35			X287	2
6	AMP	2-1703930-1	0.50x0.40F	BN	0.35			X287	3
7	AMP	2-1703930-1	0.50x0.40F	YE/GN	0.35			X981F	8
8	AMP	2-1703930-1	0.50x0.40F	BN	0.35			X608	3
9	AMP	2-1703930-1	0.50x0.40F	GN	0.35			X286	2
10	AMP	2-1703930-1	0.50x0.40F	VT	0.35			X287	1
11	AMP	2-1703930-1	0.50x0.40F	RD	0.35			X286	1
12	AMP	2-1703930-1	0.50x0.40F	BN	0.35			X286	3
13	AMP	2-1703930-1	0.50x0.40F	BN	0.35			X981F	16
14	AMP	2-1703930-1	0.50x0.40F	BN	0.35			X290	2
15	AMP	2-1703930-1	0.50x0.40F	BN	0.35			X289	2
16	AMP	2-1703930-1	0.50x0.40F	BN	0.35			X609	3
17
18
19
20
