X010

Tesla Part Number

2119756-00-A

Connector

DELPHI 35550570

Color

BK

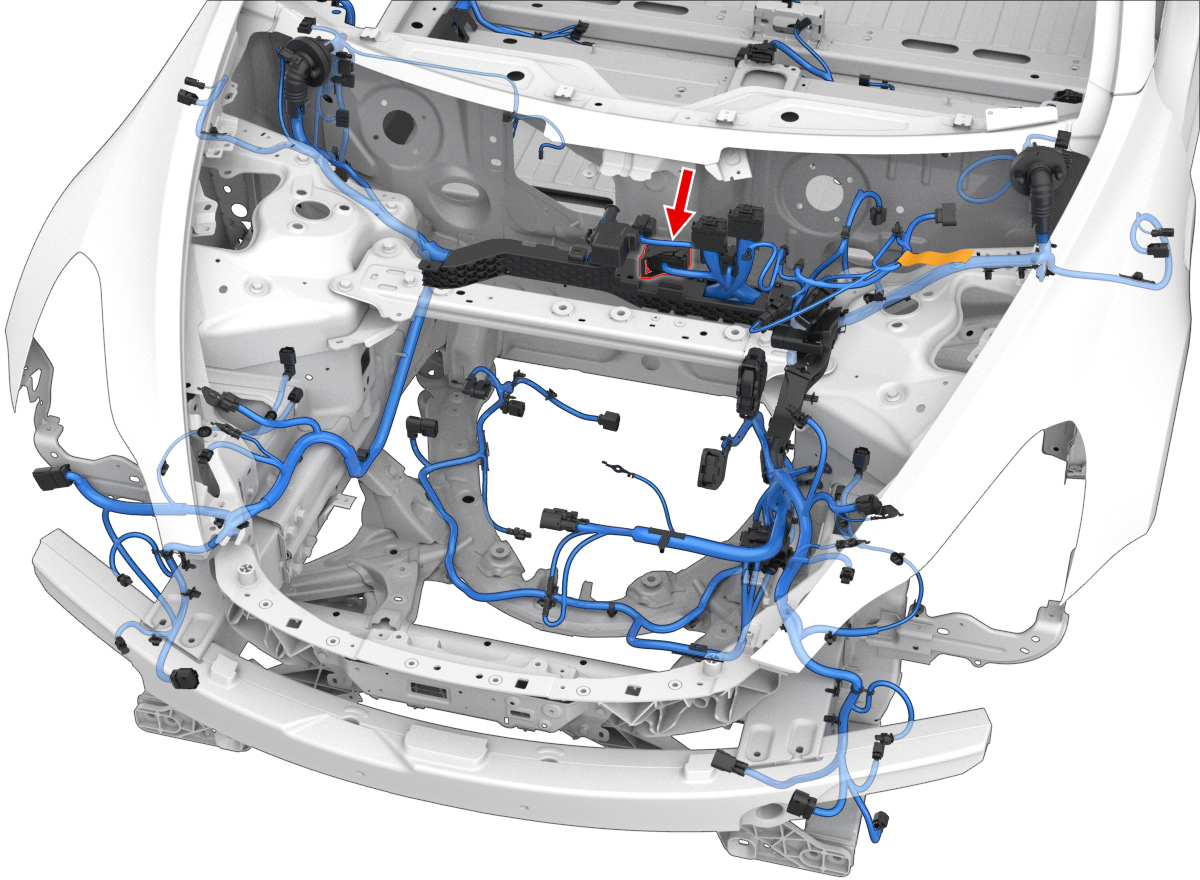

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35578191	0.64x0.64F	GY	0.35	TESLA	MAT-120-260	X906F	7
2	DELPHI	35578191	0.64x0.64F	BU	0.35	TESLA	MAT-120-260	X905F	8
3
4	DELPHI	35578191	0.64x0.64F	VT	0.35	TESLA	MAT-120-260	X911F	10
5
6	DELPHI	35578191	0.64x0.64F	YE	0.35	TESLA	MAT-120-260	X150	20
7
8
9
10	DELPHI	35578191	0.64x0.64F	YE	0.35	TESLA	MAT-120-260	X269	1
11	DELPHI	35578191	0.64x0.64F	RD	0.35	TESLA	MAT-120-260	X268	1
12	DELPHI	35578191	0.64x0.64F	YE/LTBU	0.35	TESLA	MAT-120-260	X121	15
13
14	DELPHI	35578191	0.64x0.64F	YE/LTBU	0.35	TESLA	MAT-120-260	X151	5
15	DELPHI	35578191	0.64x0.64F	YE/LTBU	0.35	TESLA	MAT-120-260	X909F	13
16	DELPHI	35578191	0.64x0.64F	WH	0.35	TESLA	MAT-120-260	X192	1
17	DELPHI	35578191	0.64x0.64F	YE	0.35	TESLA	MAT-120-260	X193	1
18	DELPHI	35578191	0.64x0.64F	BN/WH	0.35	TESLA	MAT-120-260	X037	6
19
20
21	DELPHI	35578191	0.64x0.64F	WH	0.35	TESLA	MAT-120-260	X057	2
22
23
24
25
26
27	DELPHI	35578191	0.64x0.64F	YE	0.35	TESLA	MAT-120-260	X121	16
28
29	DELPHI	35578191	0.64x0.64F	YE	0.35	TESLA	MAT-120-260	X151	19
30	DELPHI	35578191	0.64x0.64F	YE	0.35	TESLA	MAT-120-260	X909F	14
31
32
33	DELPHI	35578191	0.64x0.64F	BN	0.35	TESLA	MAT-120-260	X037	5
34
35
36
37
38	DELPHI	35578191	0.64x0.64F	WH	0.35	TESLA	MAT-120-260	X906F	8
39
40	DELPHI	35578191	0.64x0.64F	YE/LTBU	0.35	TESLA	MAT-120-260	X192	2
41	DELPHI	35578191	0.64x0.64F	YE	0.35	TESLA	MAT-120-260	X192	3
42
43
44
45	DELPHI	35088739	0.64x0.64F	GN	0.50	TESLA	MAT-120-260	X300	1
46
47	DELPHI	35578191	0.64x0.64F	GY	0.35	TESLA	MAT-120-260
48	DELPHI	35578191	0.64x0.64F	VT	0.35	TESLA	MAT-120-260	X906F	13
49
50	DELPHI	35578191	0.64x0.64F	BU	0.35	TESLA	MAT-120-260	X159	2
51
52
53	DELPHI	35088739	0.64x0.64F	WH	0.50	TESLA	MAT-120-260	X302	B
54	DELPHI	35578191	0.64x0.64F	YE/LTBU	0.35	TESLA	MAT-120-260	X150	18
55	DELPHI	35578191	0.64x0.64F	YE	0.35	TESLA	MAT-120-260	X150	10
56	DELPHI	35578191	0.64x0.64F	YE	0.35	TESLA	MAT-120-260	X906F	14
57
58	DELPHI	35578191	0.64x0.64F	GN	0.35	TESLA	MAT-120-260	X905F	7
59	DELPHI	35578191	0.64x0.64F	BN	0.35	TESLA	MAT-120-260	X906F	12
60	DELPHI	35578191	0.64x0.64F	GN/WH	0.35	TESLA	MAT-120-260	X001	7
61	DELPHI	35578191	0.64x0.64F	VT	0.35	TESLA	MAT-120-260	X906F	3
62	DELPHI	35578191	0.64x0.64F	YE	0.35	TESLA	MAT-120-260	X906F	1
63	DELPHI	35578191	0.64x0.64F	RD	0.35	TESLA	MAT-120-260	X906F	2
64	DELPHI	35578191	0.64x0.64F	BN	0.35	TESLA	MAT-120-260	X906F	9
65	DELPHI	35088739	0.64x0.64F	GY	0.50	TESLA	MAT-120-260	X057	7
66	DELPHI	35578191	0.64x0.64F	BU	0.35	TESLA	MAT-120-260	X001	5
67	DELPHI	35578191	0.64x0.64F	YE	0.35	TESLA	MAT-120-260	X001	6
68	DELPHI	35578191	0.64x0.64F	VT	0.35	TESLA	MAT-120-260	X057	6
69
70
71	DELPHI	35578191	0.64x0.64F	WH	0.35	TESLA	MAT-120-260	X151	36
72	DELPHI	35578191	0.64x0.64F	GN	0.35	TESLA	MAT-120-260	X261	2
73
74
75	DELPHI	35578191	0.64x0.64F	GN	0.35	TESLA	MAT-120-260	X260	2
76	DELPHI	35031565	1.5x0.8F	WH	2.00	TESLA	MAT-120-260	X908F	20
77	DELPHI	35031566	1.5x0.8F	BU	1.00	TESLA	MAT-120-260	X261	1
78	DELPHI	35031566	1.5x0.8F	GY	1.00	TESLA	MAT-120-260	X260	1
79	DELPHI	35031565	1.5x0.8F	VT	1.50	TESLA	MAT-120-260	X911F	1
80	DELPHI	35031566	1.5x0.8F	VT	1.00	TESLA	MAT-120-260	X301	1
81	DELPHI	35031566	1.5x0.8F	BU	1.00	TESLA	MAT-120-260	X301	2
82	DELPHI	35031567	1.5x0.8F	YE	0.35	TESLA	MAT-120-260	X906F	11
83	DELPHI	35031567	1.5x0.8F	WH	0.35	TESLA	MAT-120-260	X906F	10
84	DELPHI	35031566	1.5x0.8F	RD	1.00	TESLA	MAT-120-260	X901M	5
85
86
87
88
89	DELPHI	35031565	1.5x0.8F	BU	1.50	TESLA	MAT-120-260	X304	3
90	DELPHI	35031566	1.5x0.8F	YE	0.75	TESLA	MAT-120-260	X304	1
91	DELPHI	35031565	1.5x0.8F	WH	2.00	TESLA	MAT-120-260	X151	30
92	DELPHI	35031565	1.5x0.8F	RD	2.00	TESLA	MAT-120-260	X170	10
93	DELPHI	35031565	1.5x0.8F	TN	2.00	TESLA	MAT-120-260	X170	9
