X909F

Tesla Part Number

1849224-00-C

Connector

KSE K20F01121

Color

NA

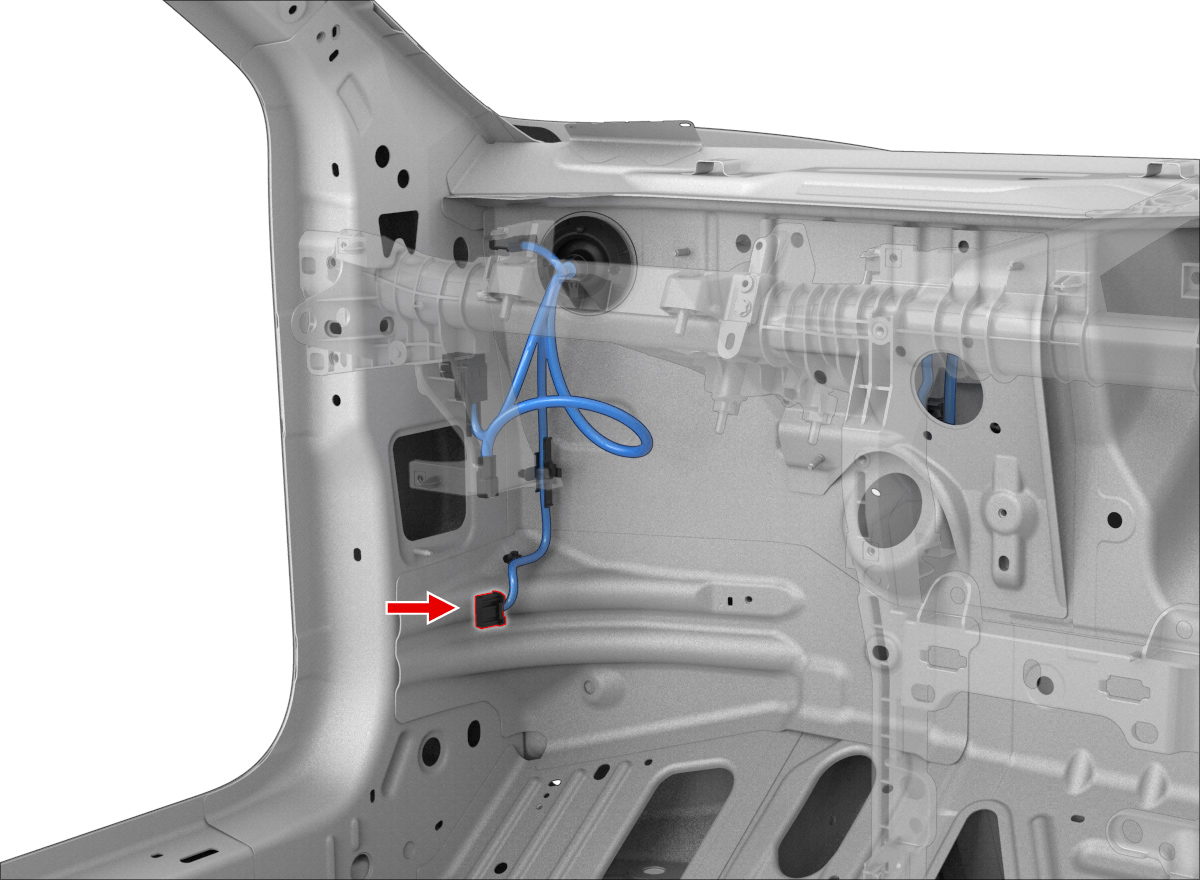

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X121A	17
3	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X121A	18
4	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X905F	5
5	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X905F	6
6
7
8
9	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X250	1
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X250	2
11
12
13	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X010	15
14	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X010	30
15
16
17
18	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X251	1
19	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X251	2
20
