X905F

Tesla Part Number

2092442-00-A

Connector

MOLEX 33472-6345

Color

BK

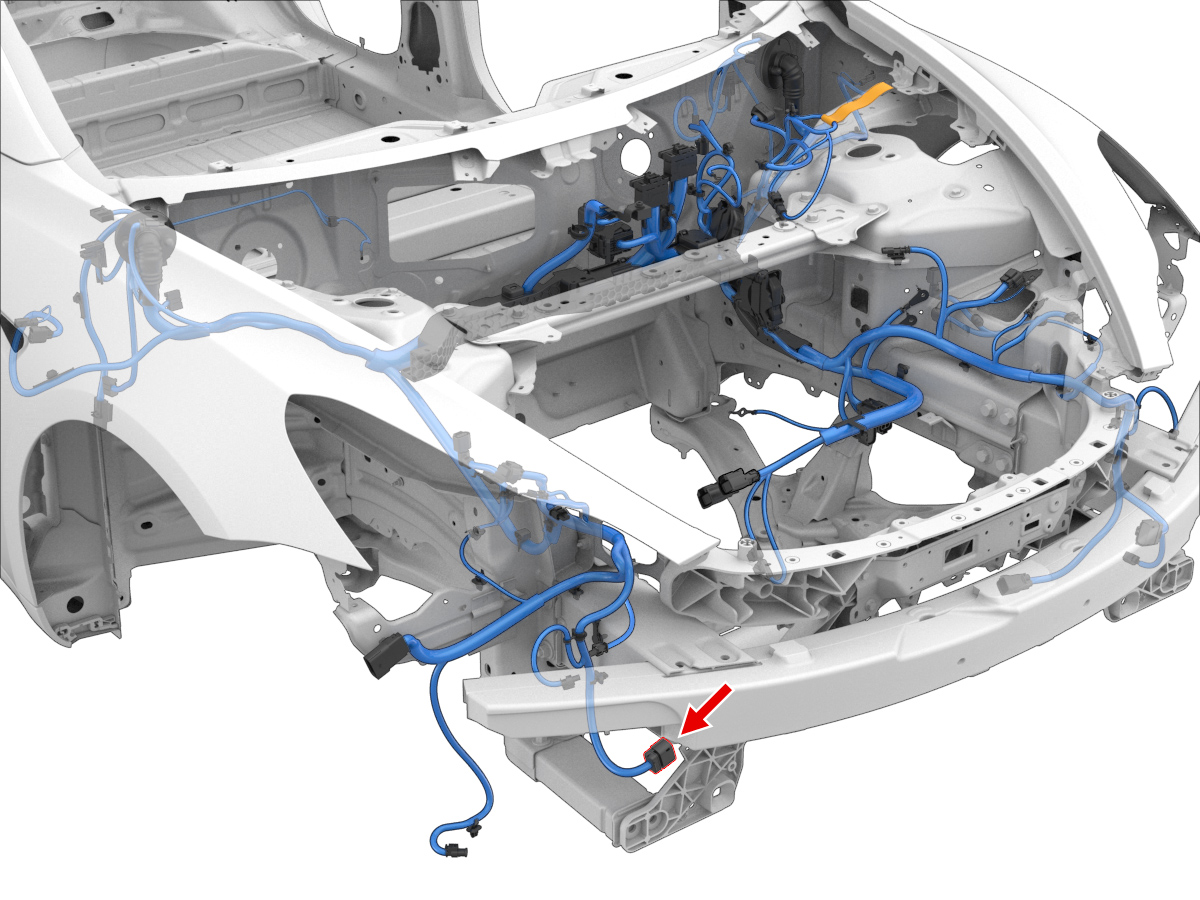

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	BK	0.50	TESLA	MAT-120-240	G012	8
2	unused
3	unused
4	unused
5	MOLEX	33012-3004	1.5x0.8F	TN	0.35	TESLA	MAT-120-240	X909F	4
6	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X909F	5
7	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X010	58
8	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X010	2
9	MOLEX	33012-3004	1.5x0.8F	WH	0.50	TESLA	MAT-120-240	X057	19
10	MOLEX	33012-3004	1.5x0.8F	BN	0.50	TESLA	MAT-120-240	X057	18
11	unused
12	unused
