X2001

Tesla Part Number

1475379-00-A

Connector

BOSCH 1928406051

Color

BK

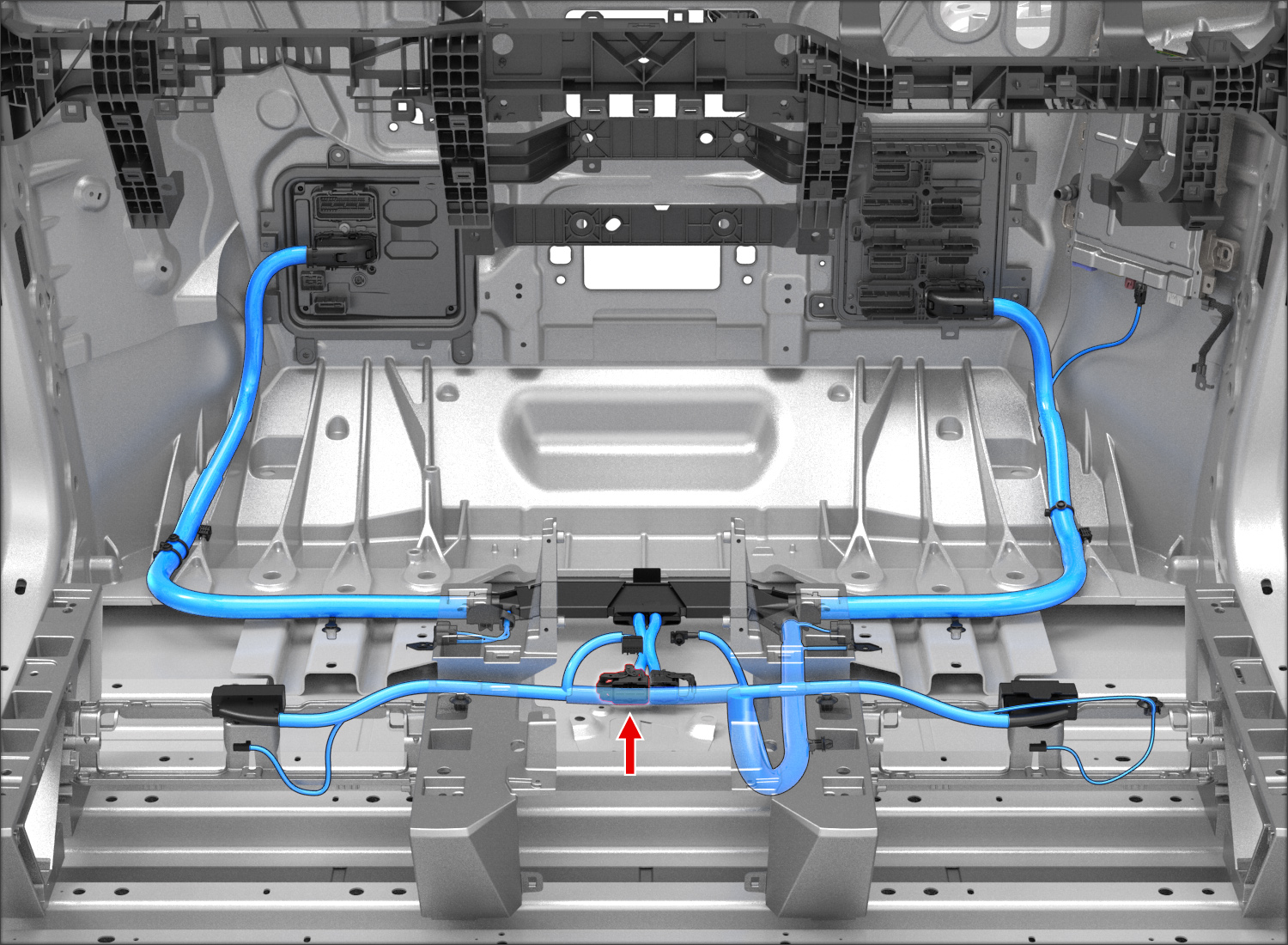

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X0034	33
2	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X0034	32
3	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X0010	56
4	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X0010	55
5
6
7
8
9	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X0034	36
10	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X0034	37
11	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X0010	64
12	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X0010	63
13
14
15	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X0034	7
16	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X0034	6
17	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X0010	53
18	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X0010	54
19	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X0034	34
20	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X0034	35
21	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X0010	52
22	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X0010	51
23
24
25
26
27
28
29
30
31
32
33	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X0010	50
34	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X0010	49
35
36
37	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X0034	31
38	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X0034	30
39	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X0010	61
40	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X0010	62
41	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X0034	56
42	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X0034	57
43	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X0010	57
44	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X0010	58
45	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X0010	25
46	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X0010	24
47	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X0034	43
48	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X0034	44
49
50
51
52
53	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X0034	23
54	BOSCH	1928499468	0.50x0.40F	RD/WH	0.35	TESLA	MAT-110-130	X0034	2
55	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G0003	1
56	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X0034	39
57
58	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G0004	1
59
60
61
62
63
64
65
66
67
68
69
70
71	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X0010	11
72	BOSCH	1928499468	0.50x0.40F	GN/WH	0.35	TESLA	MAT-110-130	X0010	12
