X955F

Tesla Part Number

1042578-00-A

Connector

SUMITOMO 6098-3909

Color

WH

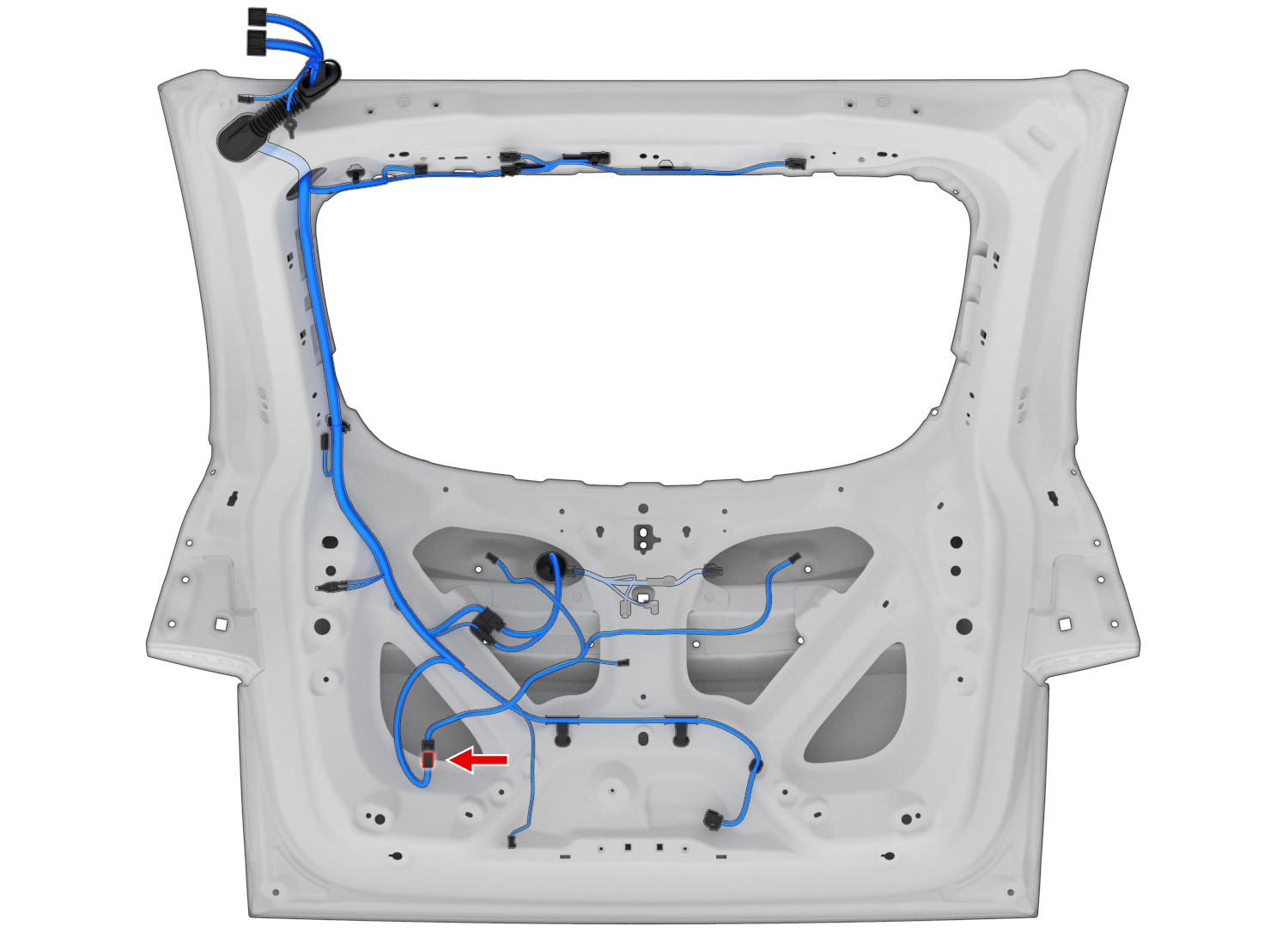

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X954F	5
2	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X954F	6
3	unused
4	unused
5	unused
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X954F	7
8	unused
9	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35
10	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35
