X954F

Tesla Part Number
2032480-00-A
Connector
AMP 2401807-1
Color
NA

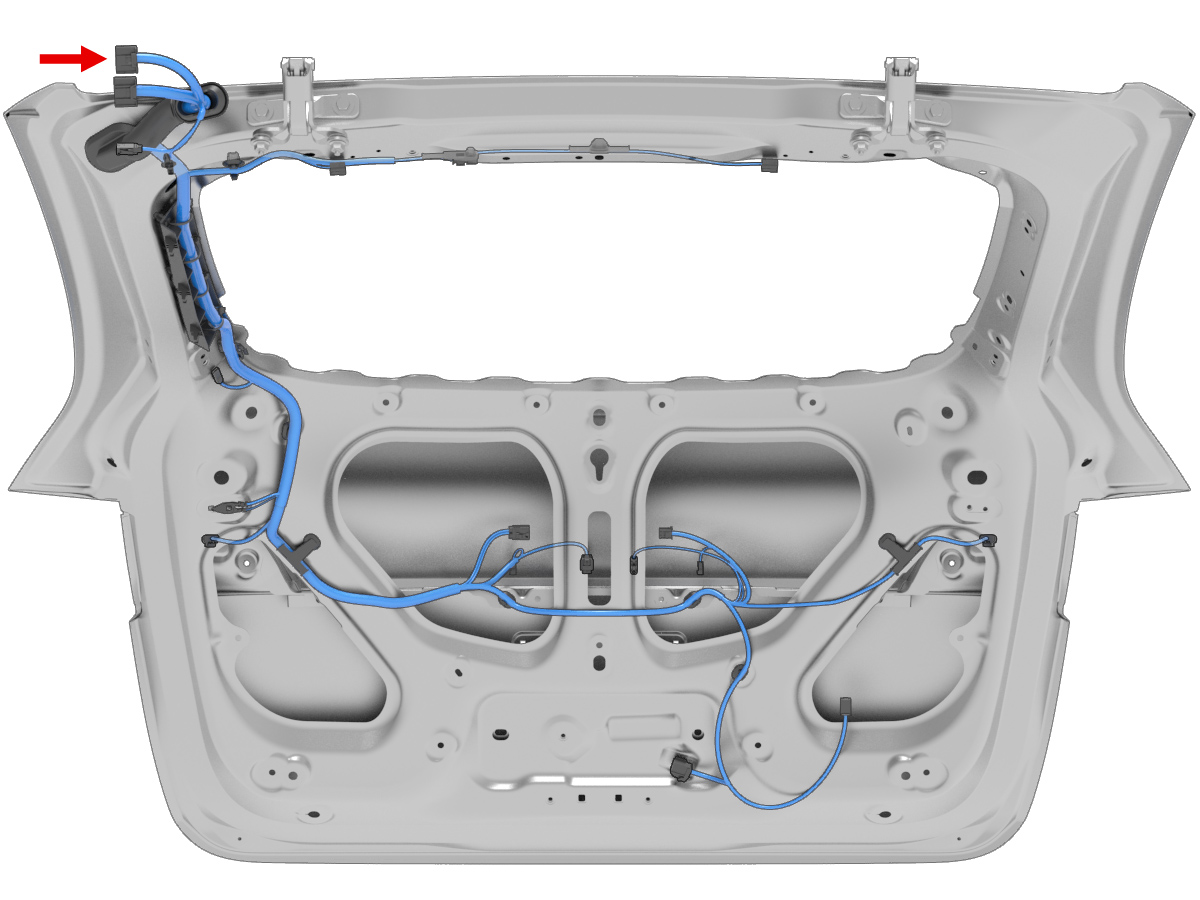

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2389205-10.63x0.63FBU0.35X3406
2AMP2389205-10.63x0.63FVT0.35X3402
3AMP2389205-10.63x0.63FRD0.35X956M2
4AMP2389205-10.63x0.63FTN0.35X956M8
5AMP2389205-10.63x0.63FWH0.35X955F1
6AMP2389205-10.63x0.63FBU0.35X955F2
7AMP2389205-10.63x0.63FVT0.35X955F7
8AMP2389205-10.63x0.63FWH0.35X3401
9AMP2389205-10.63x0.63FWH0.35X956M4
10AMP2389205-10.63x0.63FGY0.35X956M3
11unused
12unused
13unused
14unused
15unused
16AMP2389205-10.63x0.63FBU0.35X2741
