X196

Tesla Part Number

1042621-01-A

Connector

SUMITOMO 6098-5625

Color

BK

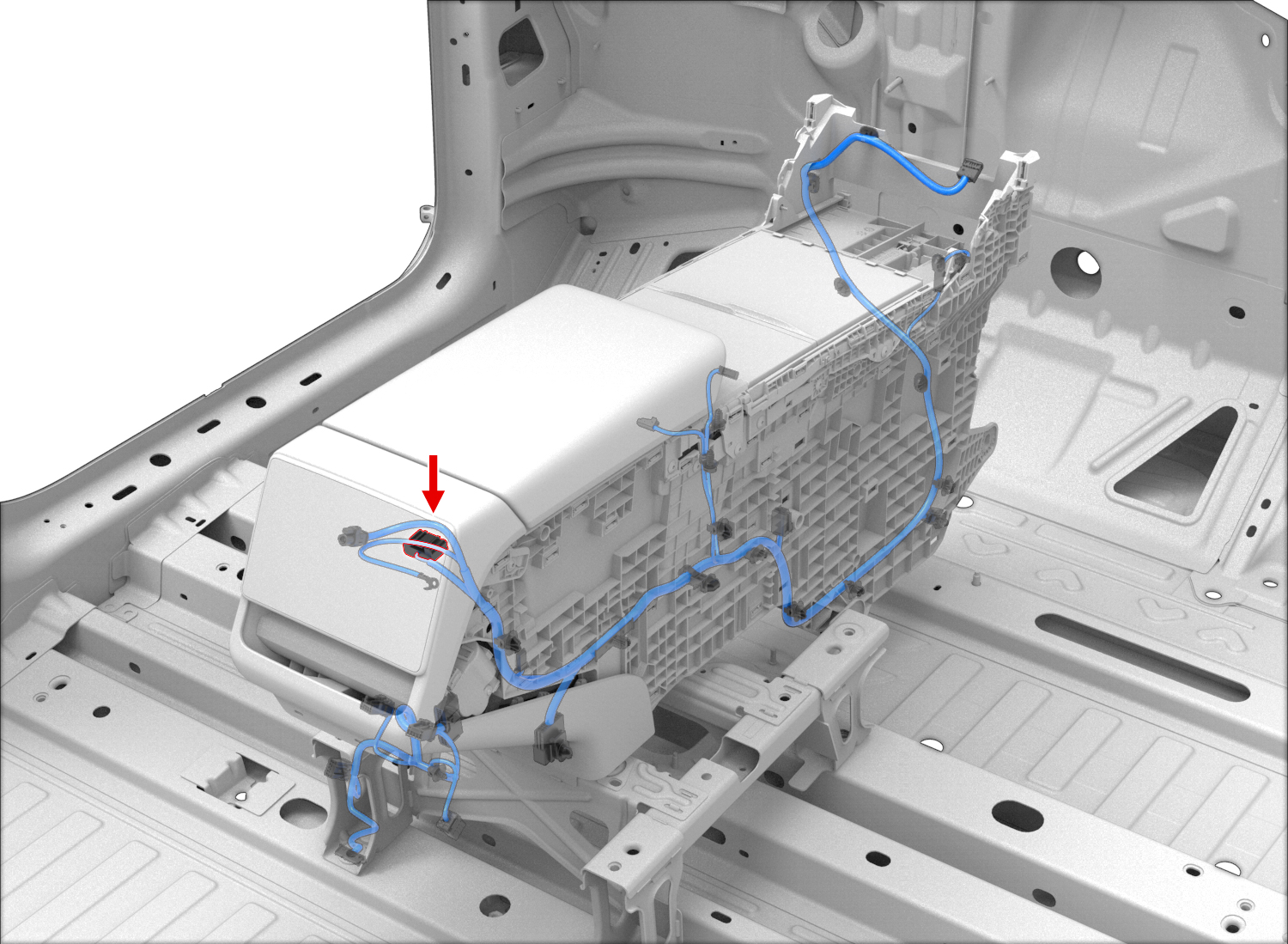

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			X931M	8
2	unused
3	unused
4	unused
5	unused
6	unused
7	unused
8	unused
9	unused
10	unused
11	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X931M	1
12	SUMITOMO	8240-0214	1.5x0.64F	BN	2.00			X694	5
13	unused
14	unused
15	unused
16	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.35			X694	2
17	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X931M	2
18	unused
19	unused
20	SUMITOMO	8240-0214	1.5x0.64F	RD	2.00			X694	1
