X472

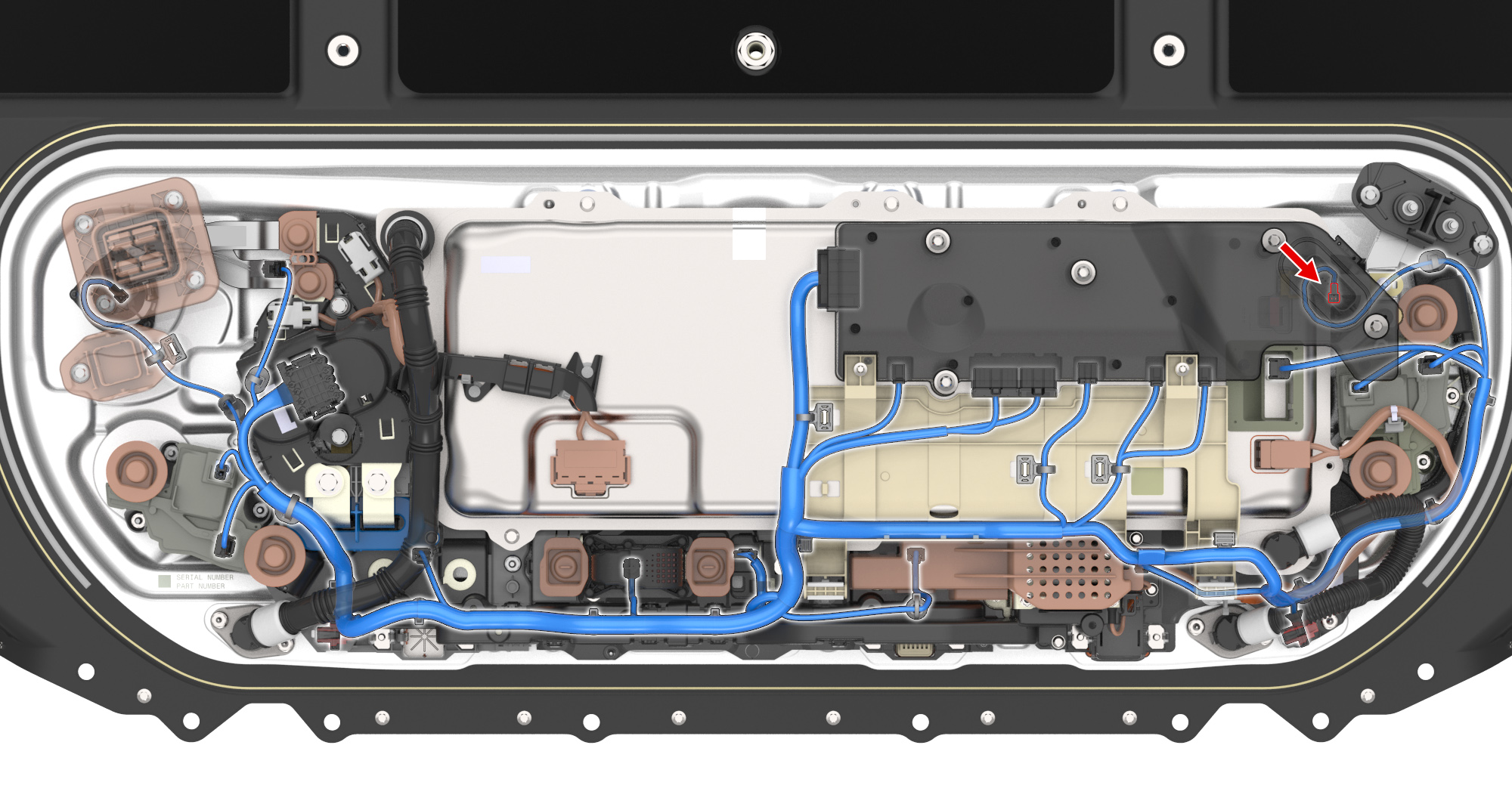

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | GEN | PIA-AU-26 | PIA | GN | 0.13 | X483 | 1 | ||
| 2 | GEN | PIA-AU-26 | PIA | WH | 0.13 | X483 | 2 |
