X953F

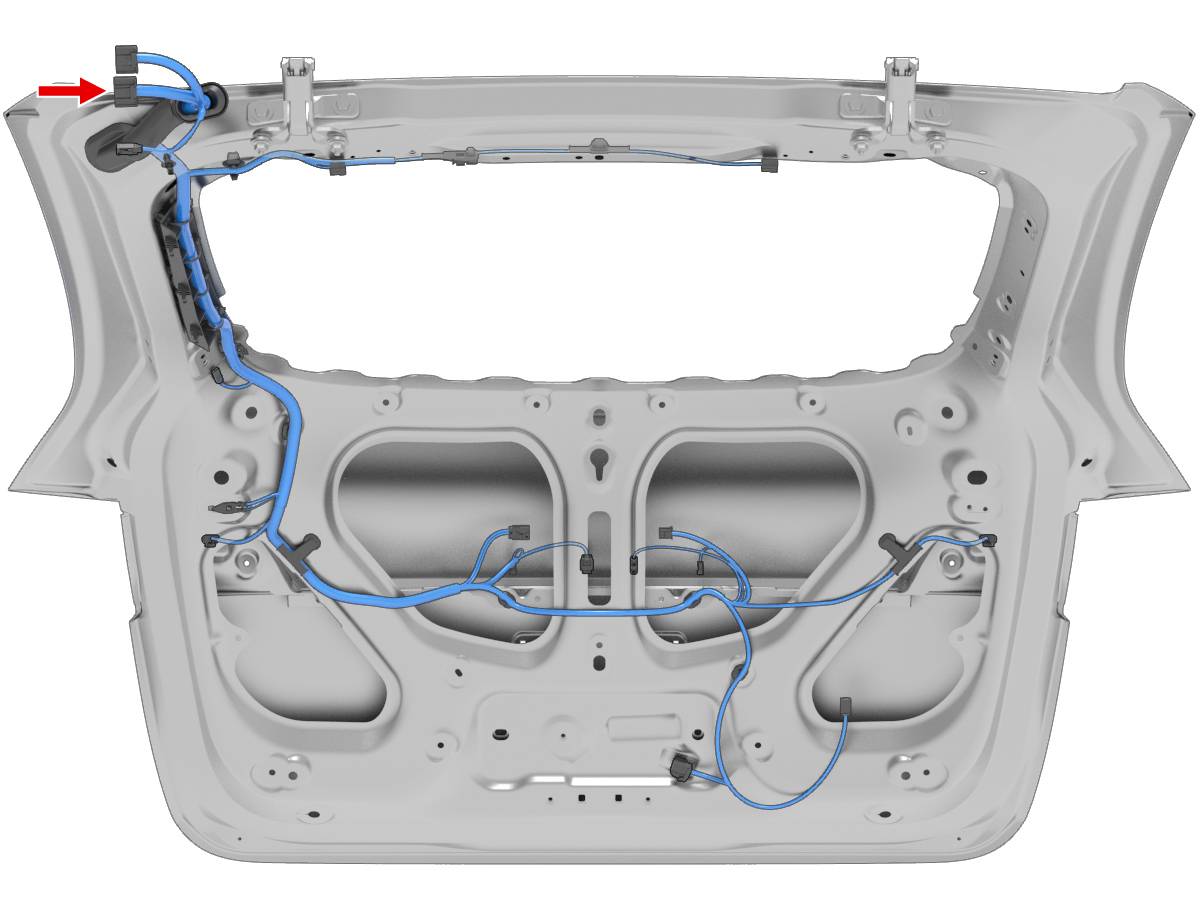

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | unused | ||||||||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | unused | ||||||||
| 8 | SUMITOMO | 8240-4932 | 4.8x0.8F | BU | 3.00 | X309 | 1 | ||
| 9 | unused | ||||||||
| 10 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X562 | 1 | ||
| 11 | SUMITOMO | 8100-3625 | 0.64x0.64F | GY | 0.35 | X562 | 7 | ||
| 12 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE | 0.35 | X562 | 9 | ||
| 13 | unused | ||||||||
| 14 | SUMITOMO | 8240-0213 | 1.5x0.64F | GY | 1.00 | X340 | 4 | ||
| 15 | SUMITOMO | 8240-0213 | 1.5x0.64F | RD | 1.00 | X340 | 5 | ||
