Glass - Roof - Fixed (Remove and Replace)

Correction code 10205002 0.96 NOTA: Salvo explicitamente indicado em contrário no procedimento, o código de correção acima e o FRT refletem todo o trabalho necessário para a realização deste procedimento, incluindo os procedimentos associados. Não acumule códigos de correção, salvo se explicitamente instruído. NOTA: Consulte Tempos de taxa fixa para saber mais sobre FRT e sobre a respetiva criação. NOTA: Consulte Proteção pessoal para garantir que utiliza o EPI adequado durante a realização do procedimento abaixo. NOTA: Consulte para conhecer as práticas seguras e saudáveis de trabalho.

  • 2026-06-01: Added warnings to set the drill clutch to 1.
  • 2026-05-19: Removed broken link and added configuration instructions.
  • 2024-12-10: Added new caution about Pre-Installation Glass Inspection service requirements.
  • 2024-03-26: Updated 13 mm to 12.5 mm bead width.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Os vídeos incluídos neste procedimento destinam-se a ser utilizados como uma visão geral apenas para efeitos complementares. Siga todos os passos enumerados no procedimento para evitar danos nos componentes e/ou ferimentos.
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
For Europe only: Only technicians who have been trained in working with diisocyanates and have completed all required certification courses are permitted to perform procedures using urethane and other products containing diisocyanates. Proper personal protective equipment (PPE) must be worn when working with products containing diisocyanates.
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Os novos componentes de vidro (para-brisas, tejadilho, porta e vidro fixo) têm de ser inspecionados antes da instalação, a fim de avaliar se estão em conformidade com as normas internas de qualidade da Tesla. Efetue a inspeção descrita em antes de iniciar este procedimento.

Remove

  1. Open all the doors and lower all the windows.
  2. Apply masking tape to protect the paint on the vehicle.
  3. Measure and record the gaps from the fixed roof glass to windshield, body sides, and backlight glass.
    Informational PurposesAn informational icon, calling your attention
    Note
    The gap measurements are used for the installation of the fixed roof glass.
  4. Prepare the WRD Spider 3 glass removal kit.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • WRD Spider 3 - 1571168-00-A
  5. Secure the line to the starter tool and push the tool through the urethane at the LH rear corner of the fixed roof glass assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to damage the headliner assembly and exterior paint.
  6. Release the line from the starter tool and wrap the line around the exterior of the fixed roof glass assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure enough length is pulled through the glass.
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify the line sits underneath the glass.
  7. Reconnect the end of the wire to the starter tool, and then pull the line back into the vehicle.
  8. Attach the anchor point to the interior of the fixed roof glass assembly, and then secure the line to the anchor.
  9. Secure the interior side of the line to the Spider cutting tool.
    Informational PurposesAn informational icon, calling your attention
    Note
    Follow the instructions on the Spider tool. Feed the line through the opening of the cutting tool and tie a knot to secure the line in place. If the spindle is not turned the proper direction, the cutting tool will be damaged.
  10. Secure the Spider cutting tool to the interior side of the fixed roof glass assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Note the orientation of the cutting line. Make sure the line wraps over the large pulley and holds a 90 degree angle.
  11. Install an angle driver to an electric drill and set the drill clutch to 1.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Failure to set the drill clutch to 1 may result in serious injury.
  12. Use the drill to turn the spindle on the cutting tool. Begin cutting urethane around the glass.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Do not begin cutting the windshield without first setting the drill clutch to 1. Failure to do so may result in serious injury.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Wear appropriate eye and hand protection while cutting the glass assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Place a plastic guard to protect the headliner assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Take precaution to make sure the line goes above the datums and the roof brackets. If the line gets caught on the roof bracket then the line will break.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use the headliner protector or a trim tool to apply upward pressure to the line as it cuts. Do not use your hands.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Move the cutting tool as needed while keeping the line close to a 90° angle. If the line gets stuck, try to pull it backwards in order release it from under the metal roof bracket or change the positions of the anchor and cutting tool.

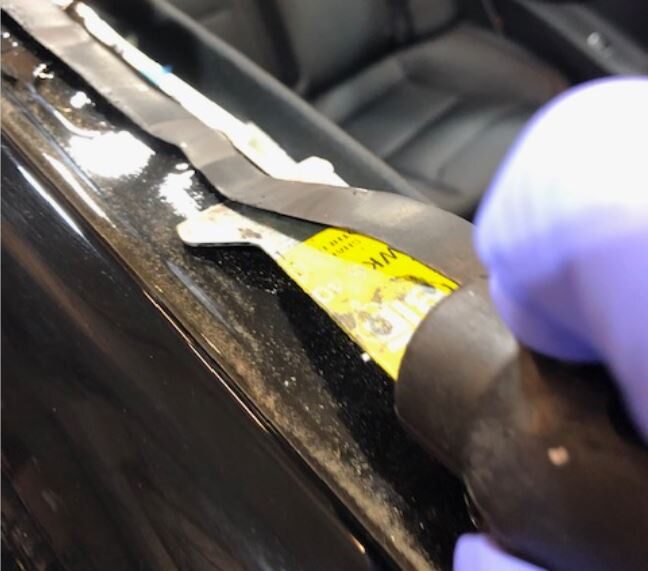

    Figure 1. Plastic guard to protect the headliner
  13. Attach suction cups (x2) to each corner of the fixed roof glass.
  14. With an assistant, remove the fixed roof glass from the vehicle.
  15. Remove the suction cups from the fixed roof glass.
  16. Use a scraper to remove old urethane from the body, and then wipe the body to clean the surfaces with isopropyl alcohol wipes.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the remaining urethane is 1 mm or less in thickness.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Make sure to wear proper PPE, including cut-resistant gloves, during this step.

Install

  1. Attach suction cups (x2) to each corner of the new fixed roof glass.
  2. Clean the leading edge of the fixed roof glass with isopropyl alcohol wipes. Allow the surface to dry before continuing to the next step.
  3. Clean the urethane path on the vehicle with an isopropyl alcohol wipes. Allow the surface to dry before continuing to the next step.
  4. Apply urethane primer to the vehicle body along the urethane path and in areas that were damaged during removal of the fixed roof glass.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow the primer to dry for at least 1 minute.
  5. Remove the masking tape from the vehicle.
  6. Apply urethane to the body following the original path.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that the urethane bead has a triangular cross-section of approximate width 12.5 mm and height 20 mm.
  7. With an assistant, install the new fixed roof glass onto the vehicle, but do not set it yet.
  8. Align the datum at the rear of the glass to the body.
  9. Using the gap measurements that were recorded during removal of the fixed roof glass, press the new fixed roof glass onto the body.
  10. Verify that the clearances with the windshield, body sides, and backlight glass are within the gap measurements and adjust, if necessary.
  11. Remove the suction cups from the new fixed roof glass.
  12. Apply tape to attach the fixed roof glass temporarily.
  13. Reposition the windshield and backlight glass seals, if necessary.
    Informational PurposesAn informational icon, calling your attention
    Note
    Spray glass cleaner to lubricate the seals, if necessary.
  14. If vehicle was built before approximately April 5, 2019: the "roofGlassType" config may need an update. Set the "roofGlassType" config value to "tsa5_nopet". See .
  15. Remove the masking tape after the urethane has cured.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Não conduza o veículo até decorrido o período de tempo mínimo após o qual é seguro conduzir o veículo indicado pelo fabricante do adesivo. O Dow Betaseal Express apresenta um período de tempo após o qual é seguro conduzir o veículo mínimo de 1 hora em temperaturas iguais ou superiores a 0 ˚F (-18 ˚C). Se necessário, deixe a fita a aplicar pressão no vidro do veículo e indique ao cliente que a pode remover após 24 horas. Em acréscimo, indique ao cliente que este deve evitar conduzir a velocidades elevadas e sobre lombas durante as próximas 24 horas.
