Bumper Assembly - Rear

FRT No: 10010902

    Remove


  1. Remove LH rear wheel arch liner (refer to procedure).

  2. Remove RH rear wheel arch liner.

  3. Remove rear diffuser tray (refer to procedure).

  4. Remove licence plate lamp (refer to procedure).

  5. Remove LH rear light cluster (refer to procedure).

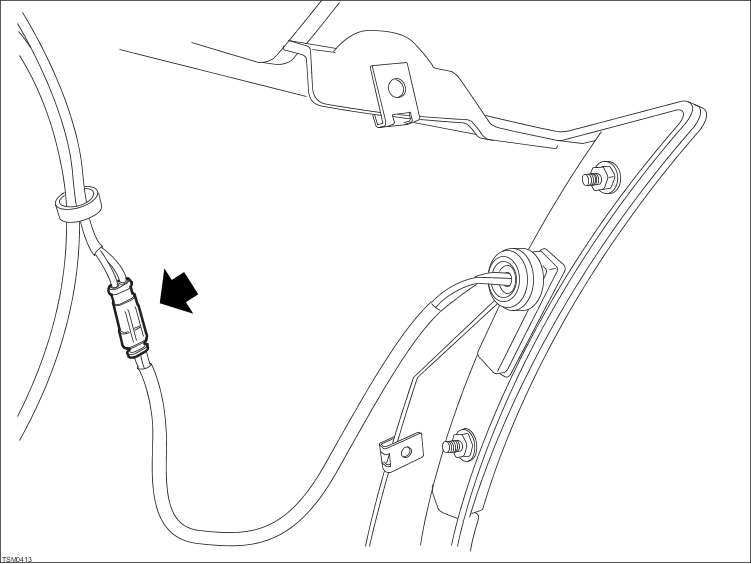

  6. Disconnect LH side marker light connector.

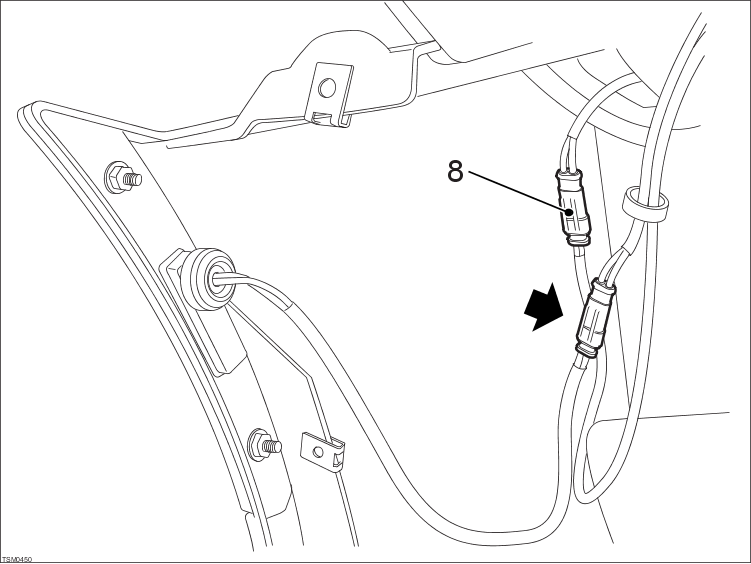

  7. Disconnect RH side marker light connector.


  8. Disconnect RH tail light connector.

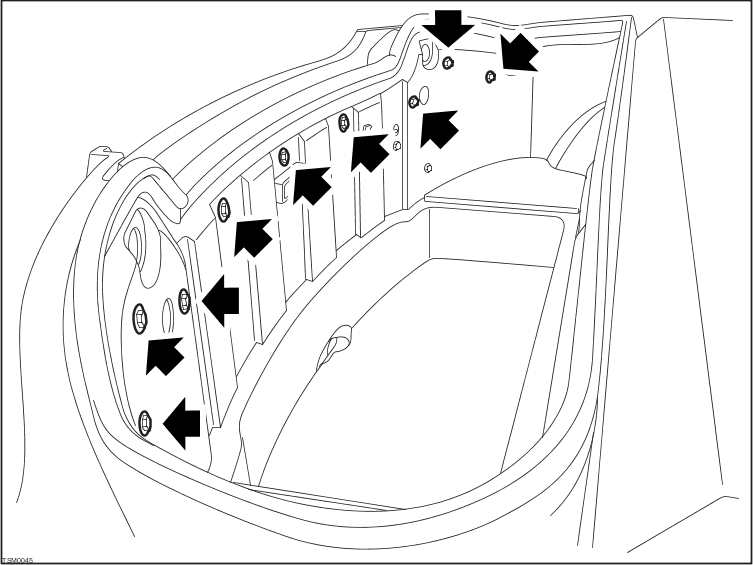

  9. Remove bolts (x9) securing bumper to trunk assembly.


  10. With assistance, remove rear bumper.

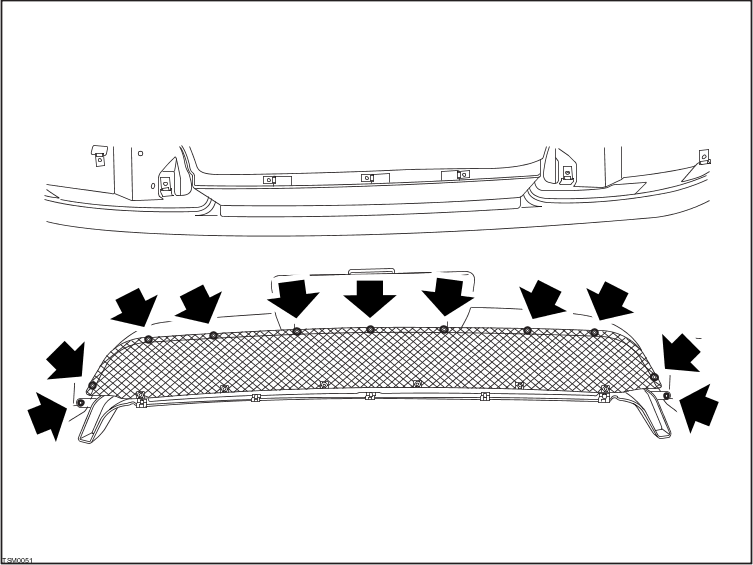

  11. Remove screws and washers (x11) grille and diffuser to bumper.


  12. Remove grille and rear diffuser from bumper

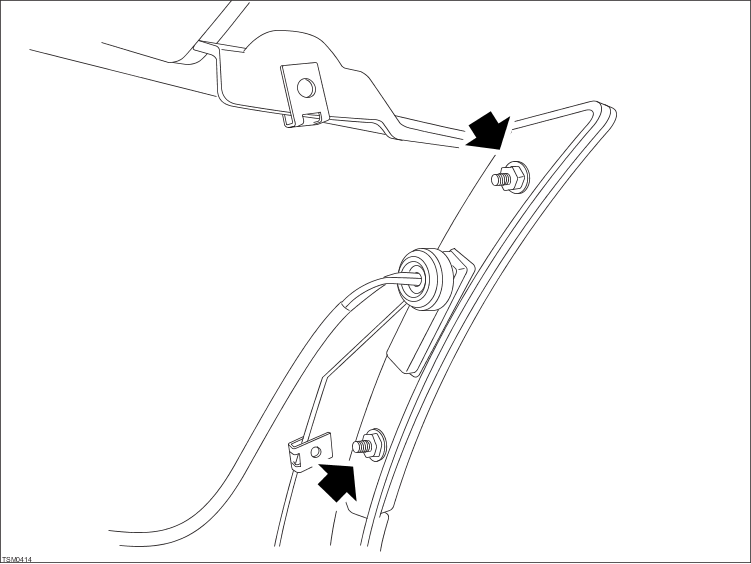

  13. Remove nuts (x4) securing side marker lights to bumper. Remove side marker lights.


  14. Remove nuts and nylon spacers (x3) securing tail lamp to trunk. Remove tail lamp.

    Installation


  1. Installation procedure is reverse of removal except for the following.

  2. Check alignment of bumper to body adjust as necessary.
