Wheel Arch Liner - Rear - LH

FRT No: 12011102

    Remove


  1. Remove LH rear forward wheel arch liner (refer to procedure).

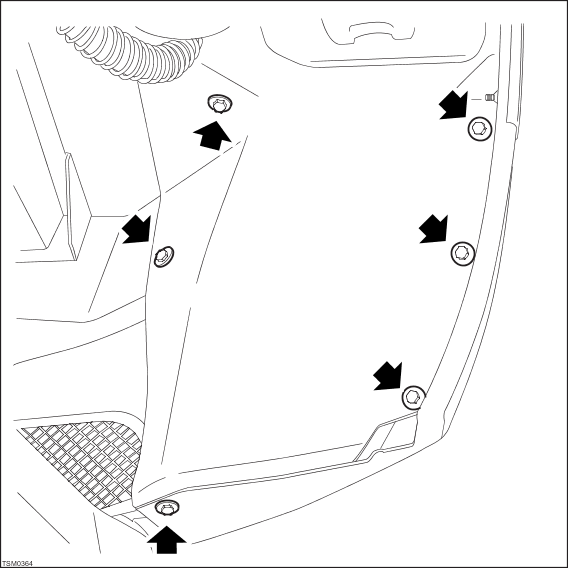

  2. Remove bolts (x6) securing wheel arch liner to rear bumper.

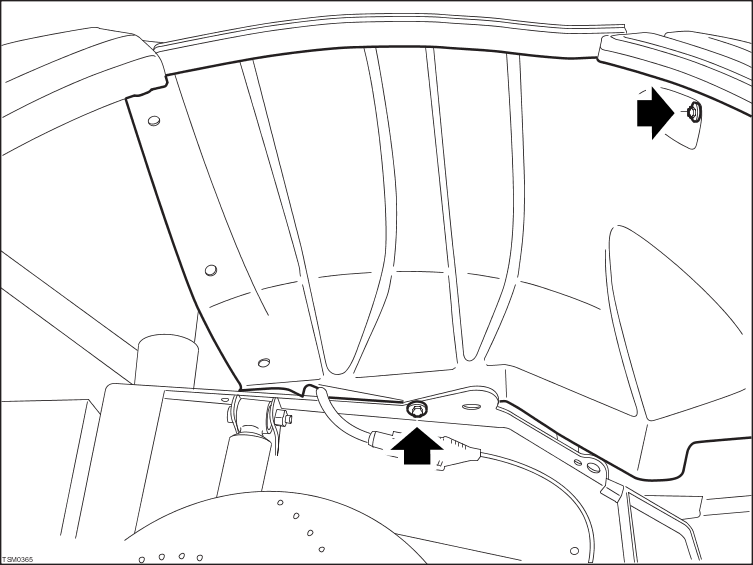

  3. Remove bolts (x2) securing wheel arch to subframe and bumper.


  4. Remove wheel arch liner.

    Installation


  1. Installation procedure is reverse of removal.
