Tail Light Assembly - LH

FRT No: 17110402

    Remove


  1. Open trunk.

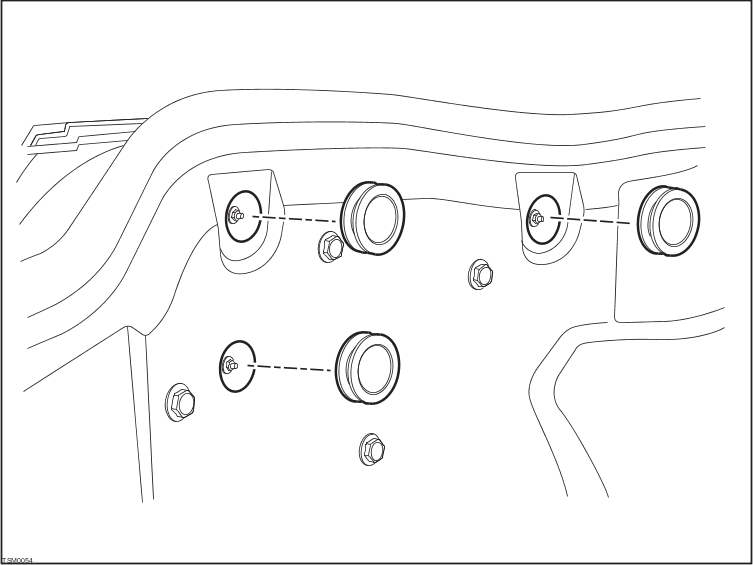

  2. Remove rubber access plugs (x3) from trunk box.

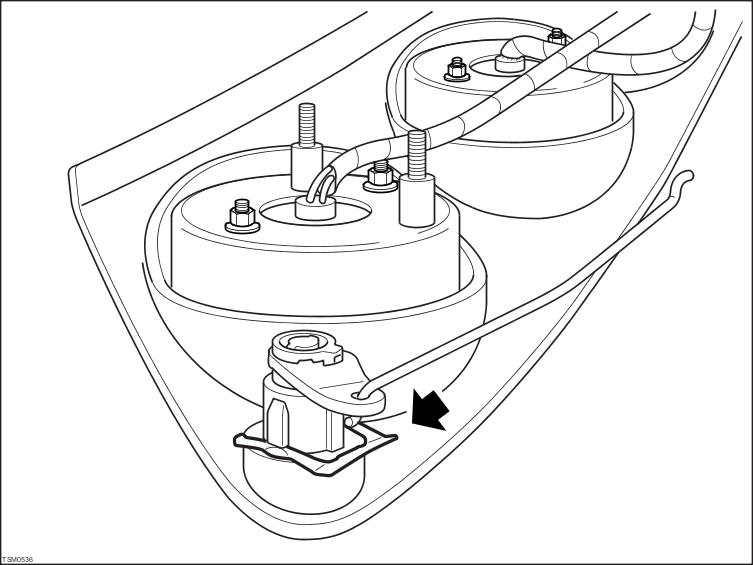

  3. Remove nuts (x3) and washers (x3) securing LH rear light cluster to bumper.

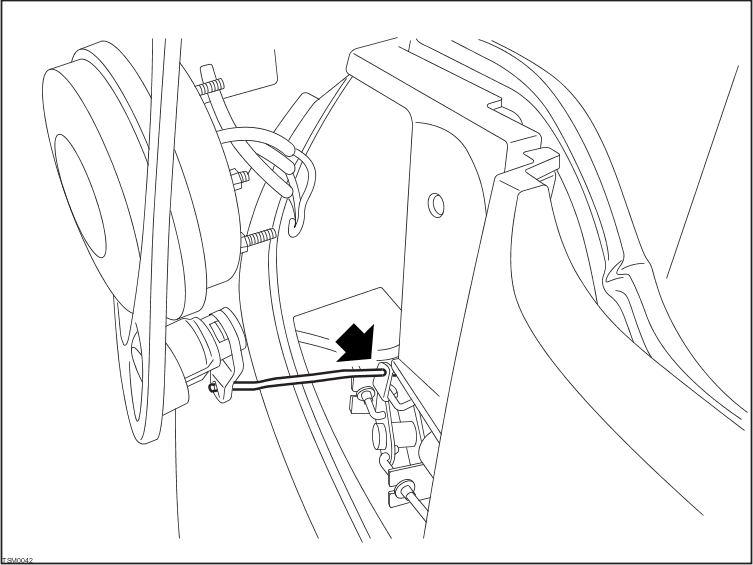

  4. Disconnect rod from trunk release rotor.

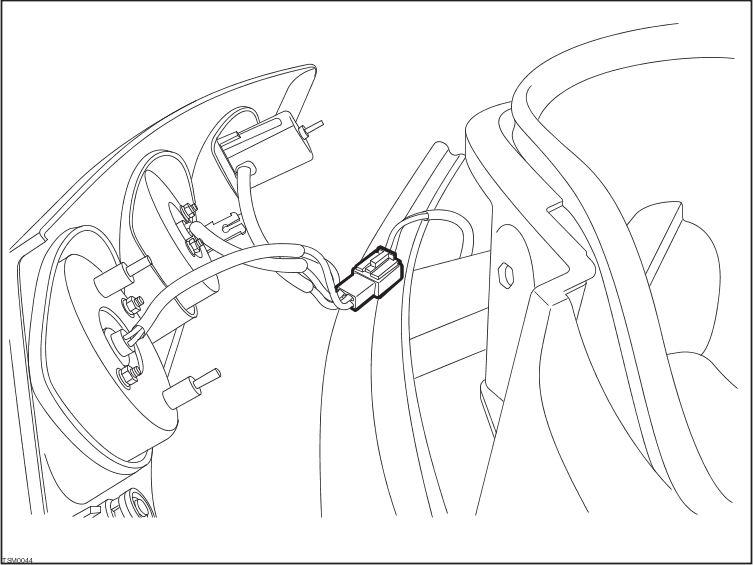

  5. Disconnect light cluster connector and remove light cluster.


  6. Release clip and remove lock barrel assembly from LH tail light assembly.

    Installation


  1. Installation procedure is reverse of removal.
