Panel - Diffuser Tray - Rear

FRT No: 10250802

    Remove


  1. Raise vehicle and position wheels on blocks.

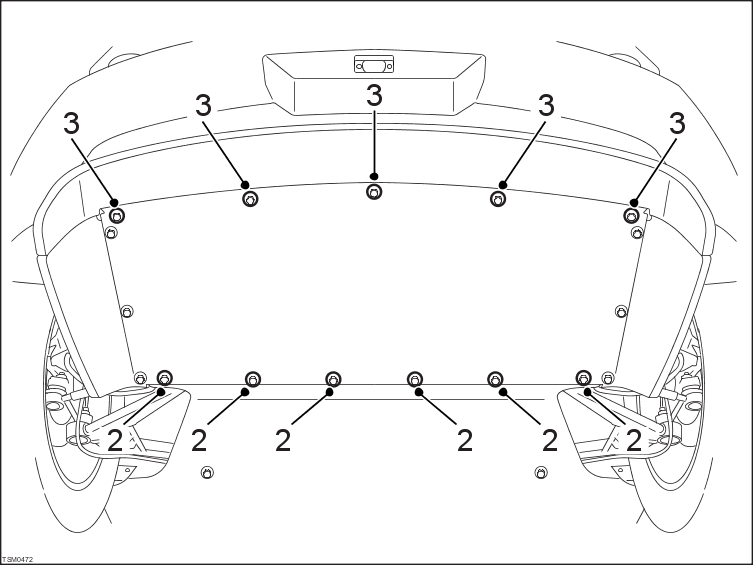

  2. Remove bolts and washers (x6) securing rear diffuser tray to rear subframe and middle undershield.


  3. Remove bolts (x5) securing rear diffuser tray to rear diffuser trim (torque - 8 Nm).

  4. Remove rear diffuser tray.

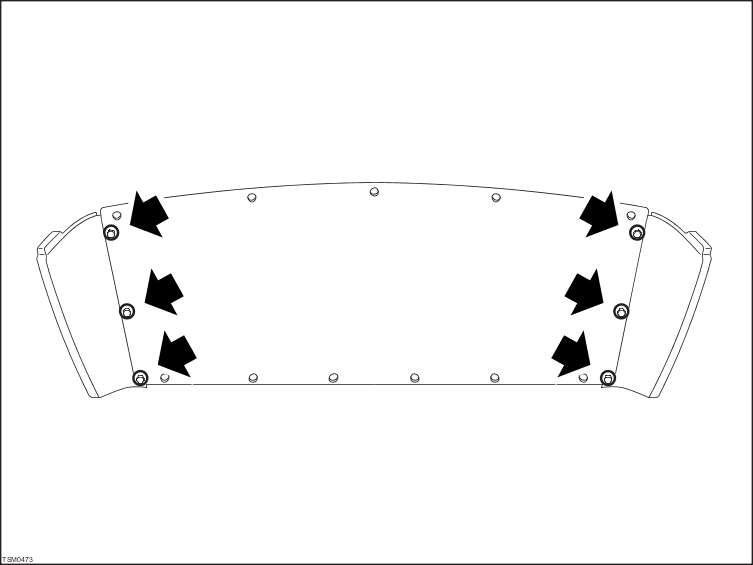

  5. Remove bolts (x6) securing LH and RH rear diffuser trims to rear diffuser tray.

    Installation


  1. Installation procedure is reverse of removal.
