X942F

Tesla Part Number

1849226-00-C

Connector

KSE K20F01221

Color

NA

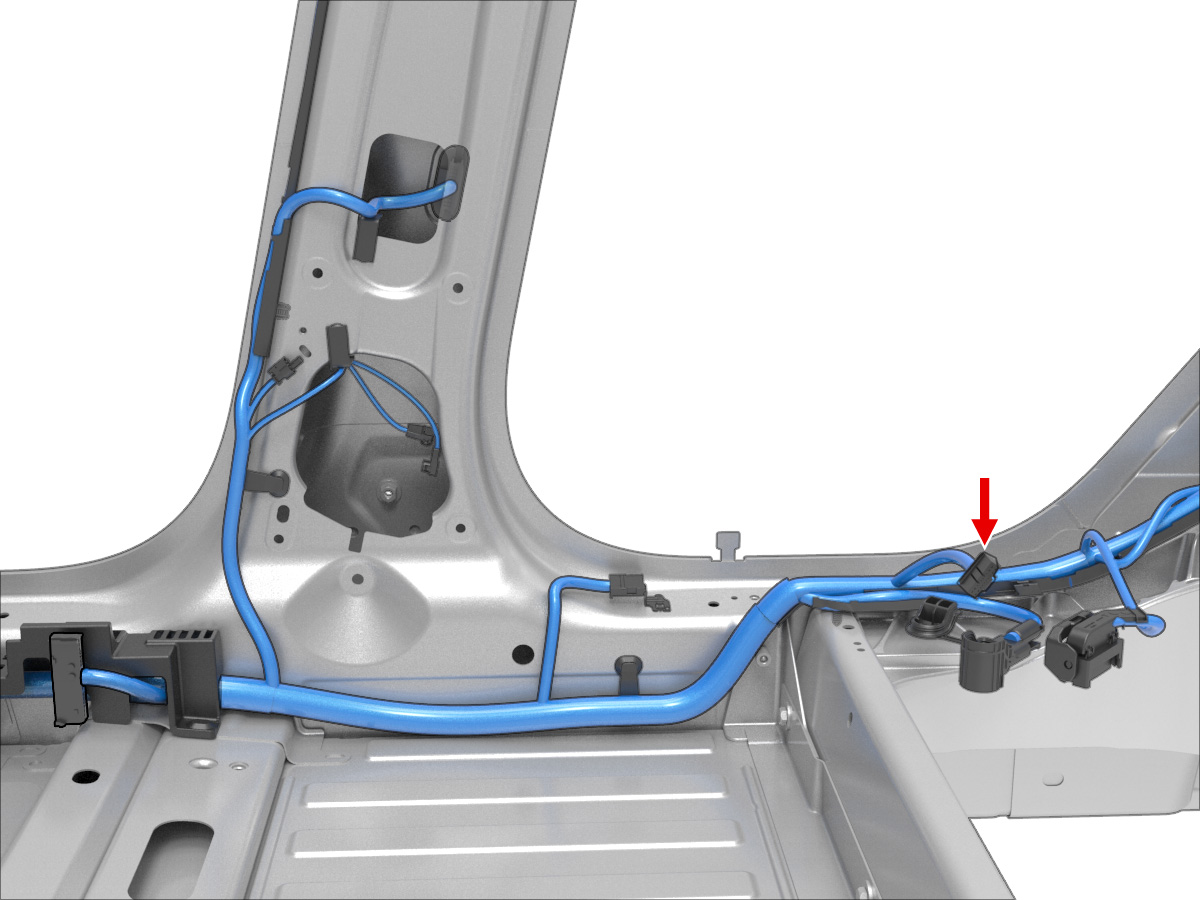

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X050	41
2	unused
3	unused
4	unused
5	unused
6	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X051	17
7	unused
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X059	8
9	unused
10	unused
11	unused
12	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50			G032	4
13	unused
14	unused
15	SUMITOMO	8240-0214	1.5x0.64F	GY	2.00			X050	40
16	unused
17	unused
18	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X051	40
19	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X059	7
20	unused
21	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X050	14
22	unused
23	unused
24	unused
25	unused
26	unused
