X048

Tesla Part Number

1642203-00-A

Connector

PLASTIMAT 781 300 900

Color

BK

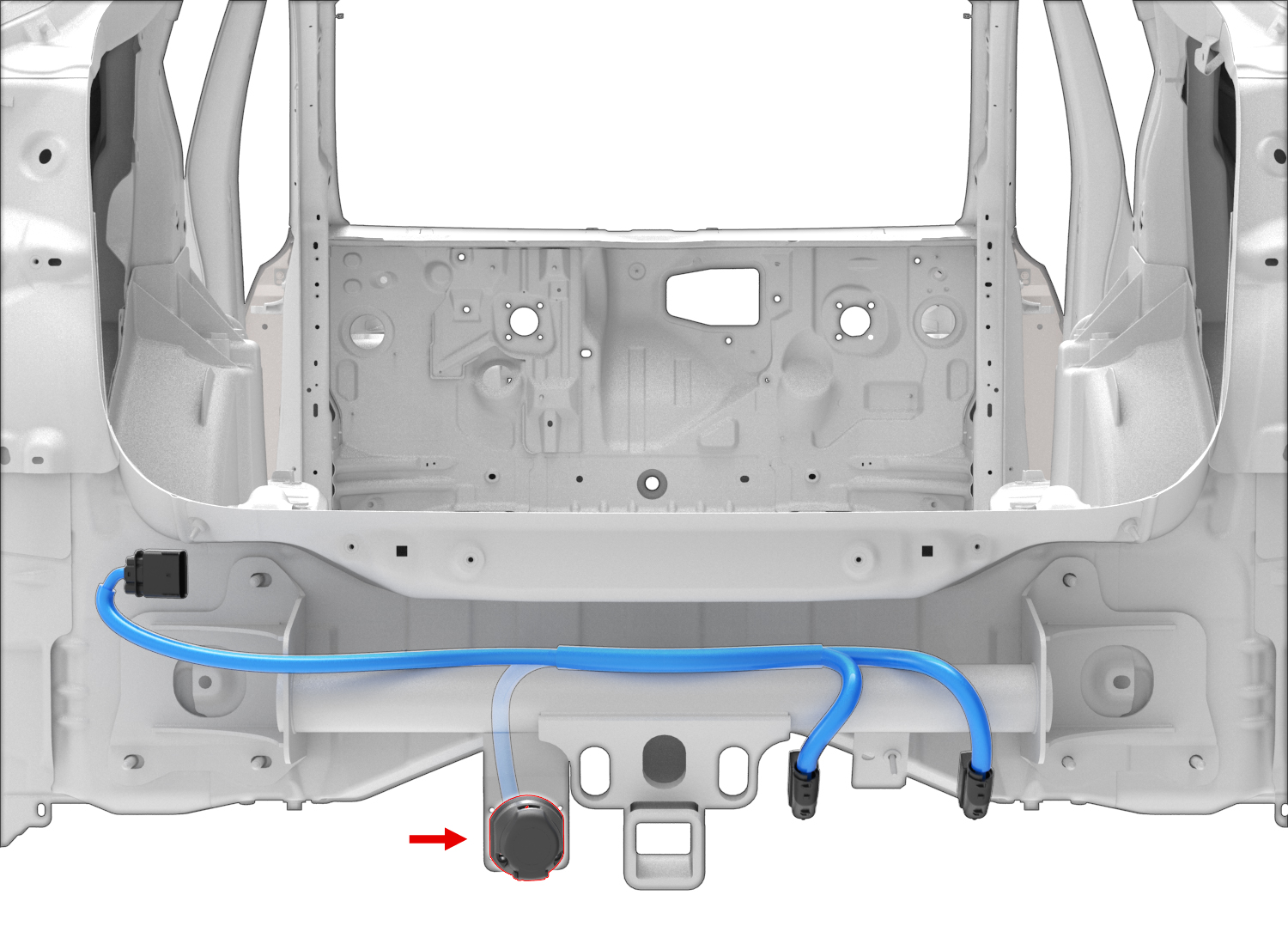

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	929975-1	2.5FS	YE	1.50	AMP	828921-1	X042	11
2	AMP	929975-1	2.5FS	BU	1.50	AMP	828921-1	X042	12
3	AMP	929975-1	2.5FS	WH	2.00	AMP	828921-1	X042	2
4	AMP	929975-1	2.5FS	GN	1.50	AMP	828921-1	X042	13
5	AMP	929975-1	2.5FS	BN	1.50	AMP	828921-1	X042	10
6	AMP	929975-1	2.5FS	RD	1.50	AMP	828921-1	X042	8
7	AMP	929975-1	2.5FS	BK	1.50	AMP	828921-1	X042	9
8	AMP	929975-1	2.5FS	PK	1.50	AMP	828921-1	X042	7
9	AMP	929975-1	2.5FS	OG	2.00	AMP	828921-1	X042	6
10	AMP	929975-1	2.5FS	GY	2.00	AMP	828921-1	X042	5
11	AMP	929975-1	2.5FS	BK/WH	2.00	AMP	828921-1	X042	4
12	AMP	929975-1	2.5FS	GY	2.00	AMP	828921-1	X042	1
13	AMP	929975-1	2.5FS	RD/WH	2.00	AMP	828921-1	X042	3
