G012

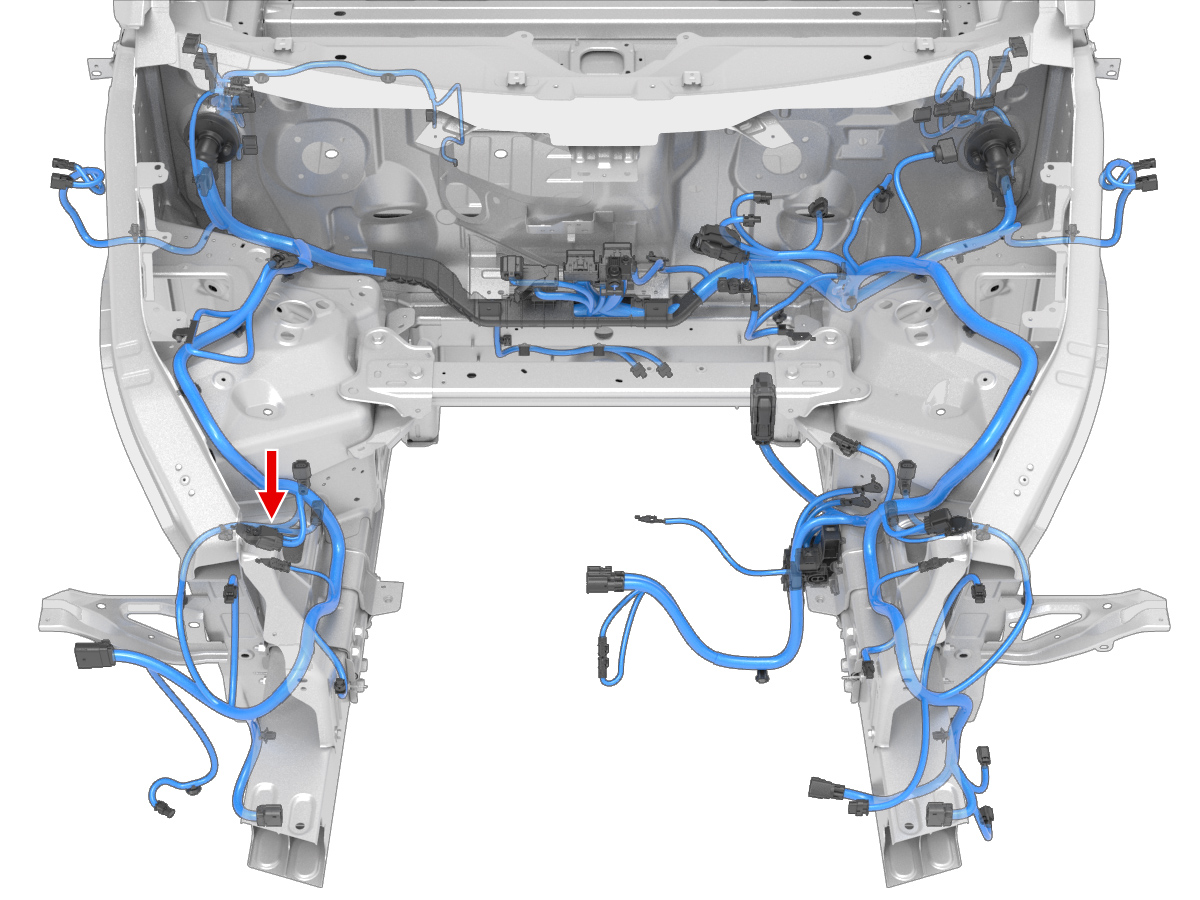

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 10780234 | 9.5FS | BK | 10.00 | DELPHI | 10889241 | G024 | 1 |
| 2 | DELPHI | 35138800 | 1.5 | BK | 0.35 | DELPHI | 13582731 | X269 | 2 |
| 3 | unused | ||||||||
| 4 | unused | ||||||||
| 5 | unused | ||||||||
| 6 | DELPHI | 13976118 | 6.3FS | BK | 5.00 | DELPHI | 15363605 | X150C | 1 |
| 7 | unused | ||||||||
| 8 | unused | ||||||||
| 9 | unused | ||||||||
| 10 | unused | ||||||||
| 11 | DELPHI | 15446674 | 2.8FS | BK | 1.00 | DELPHI | 15339967 | X261 | 3 |
| 12 | DELPHI | 15446673 | 2.8FS | BK | 0.35 | DELPHI | 15339967 | X159B | 1 |
| 13 | DELPHI | 15446675 | 2.8FS | BK | 2.50 | DELPHI | 15339838 | X300A | 3 |
| 14 | unused | ||||||||
| 15 | DELPHI | 13976118 | 6.3FS | BK | 5.00 | DELPHI | 15363605 | X152 | 46 |
