X049

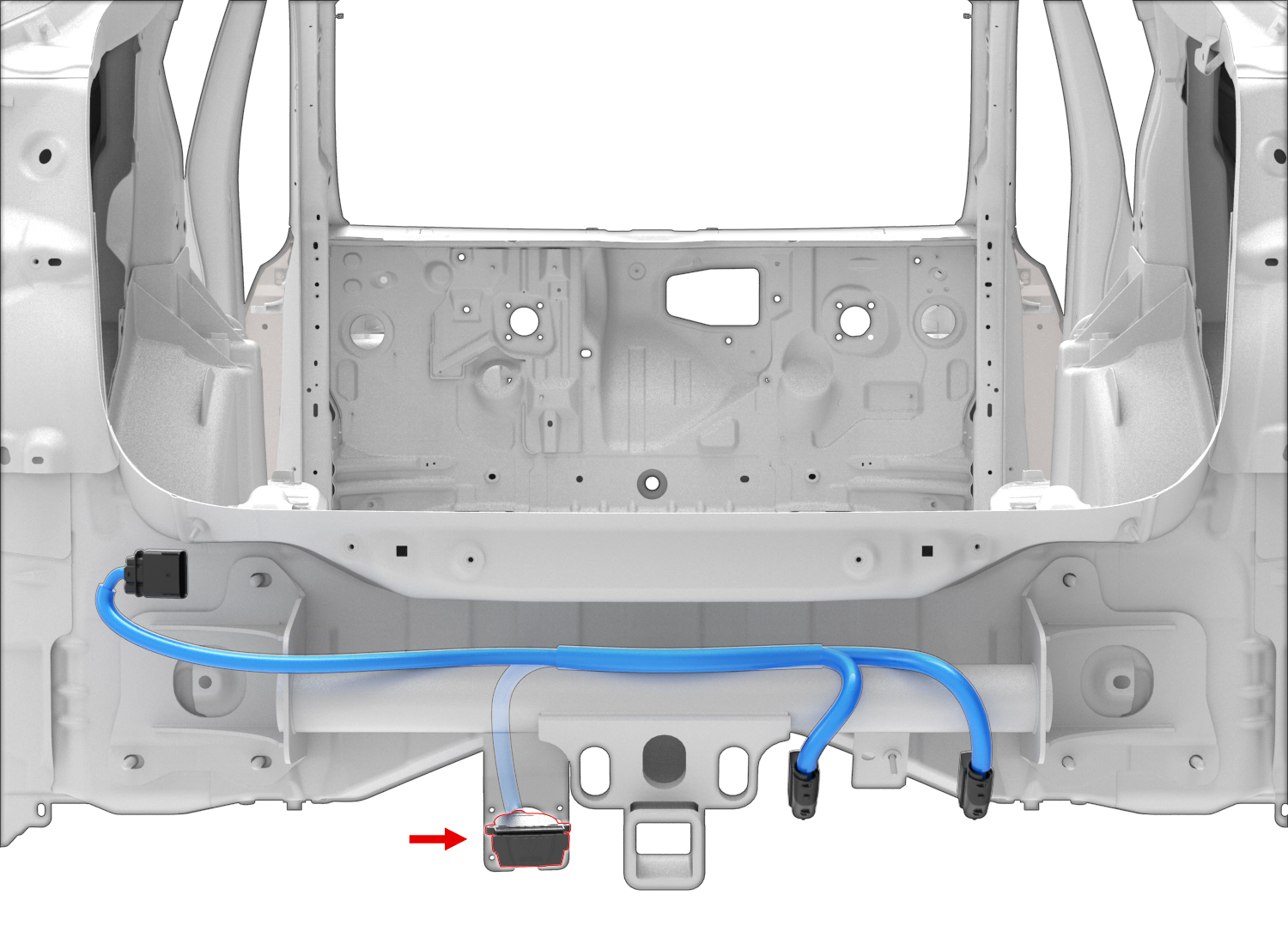

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1-968857-1 | 2.8x0.8FS | YE | 1.50 | AMP | 828905-1 | X042 | 11 |
| 2 | AMP | 1-968857-1 | 2.8x0.8FS | BK | 1.50 | AMP | 828905-1 | X042 | 7 |
| 3 | AMP | 1-968857-1 | 2.8x0.8FS | WH | 2.50 | AMP | 828905-1 | X042 | 2 |
| 4 | AMP | 1-968857-1 | 2.8x0.8FS | GN | 1.50 | AMP | 828905-1 | X042 | 13 |
| 5 | AMP | 1-968857-1 | 2.8x0.8FS | BU | 2.00 | AMP | 828905-1 | X042 | 1 |
| 6 | AMP | 1-968857-1 | 2.8x0.8FS | RD | 1.50 | AMP | 828905-1 | X042 | 8 |
| 7 | AMP | 1-968857-1 | 2.8x0.8FS | BN | 1.50 | AMP | 828905-1 | X042 | 10 |
