X915M

Tesla Part Number

1486227-01-A

Connector

DELPHI 33239519

Color

NA

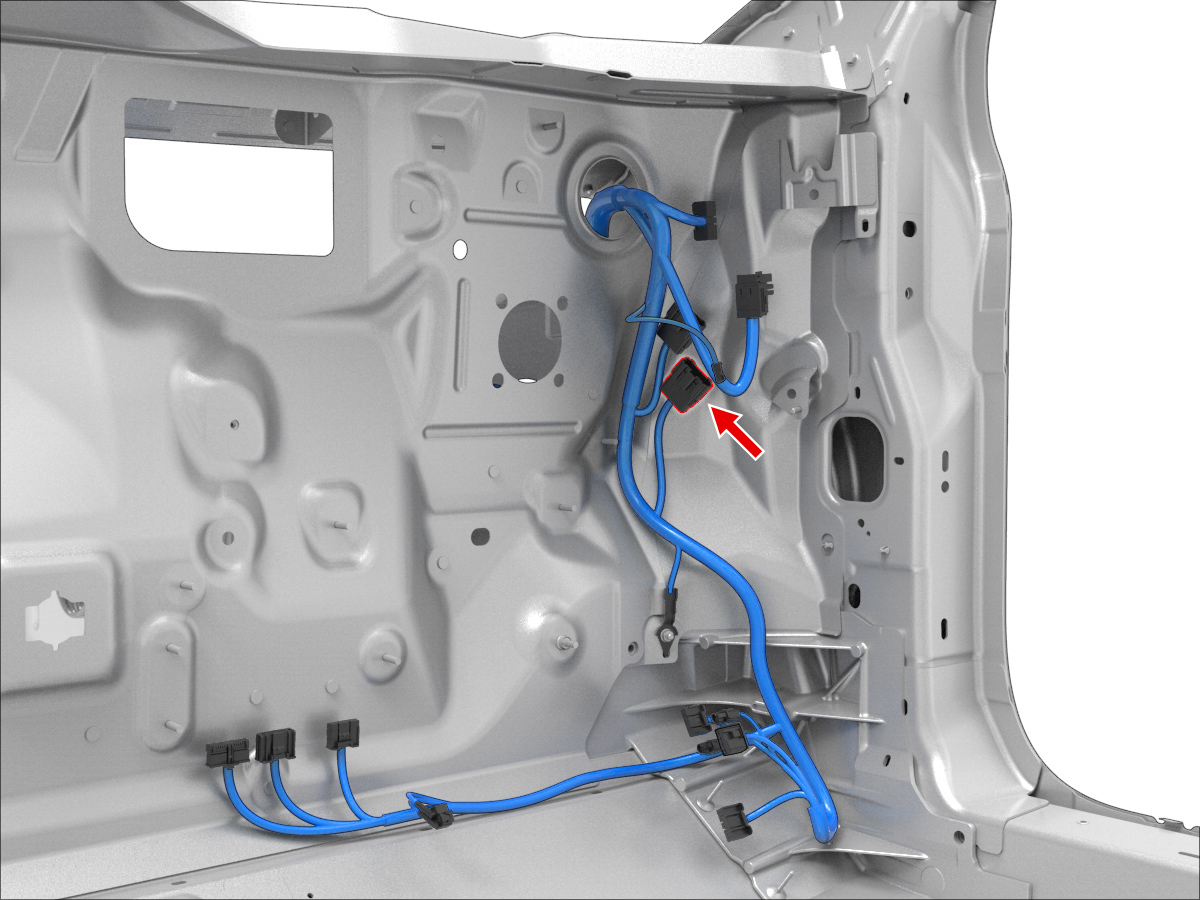

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35091061	1.2x0.6M	VT	1.00			X900M	4
2	DELPHI	35412744	1.2x0.6M	GY	0.35			X963M	9
3	DELPHI	35412744	1.2x0.6M	VT	0.35			X963M	10
4	DELPHI	35412744	1.2x0.6M	RD	0.35			X906F	5
5	DELPHI	35412744	1.2x0.6M	GN	0.35			X906F	6
6	DELPHI	35412744	1.2x0.6M	YE	0.35			X213	1
7	DELPHI	35412744	1.2x0.6M	BN	0.35			X213	2
8	DELPHI	35412744	1.2x0.6M	GN	0.35			X906F	10
9	DELPHI	35091062	1.2x0.6M	BU	0.50			X151	17
10	DELPHI	35091062	1.2x0.6M	YE	0.50			X151	29
11	DELPHI	35091062	1.2x0.6M	YE	0.50			X900M	1
12	DELPHI	35412744	1.2x0.6M	VT/WH	0.35			X170	6
13	DELPHI	35412744	1.2x0.6M	VT	0.35			X170	5
14	DELPHI	35412744	1.2x0.6M	GN/WH	0.35
15	DELPHI	35412744	1.2x0.6M	GN	0.35
16	DELPHI	35091062	1.2x0.6M	BU	0.50			X964M	6
17	DELPHI	35091062	1.2x0.6M	WH	0.50			X964M	7
18	DELPHI	35412744	1.2x0.6M	BU	0.35
19	DELPHI	35412744	1.2x0.6M	WH	0.35
