X915F

Tesla Part Number

1486226-01-A

Connector

DELPHI 33239500

Color

NA

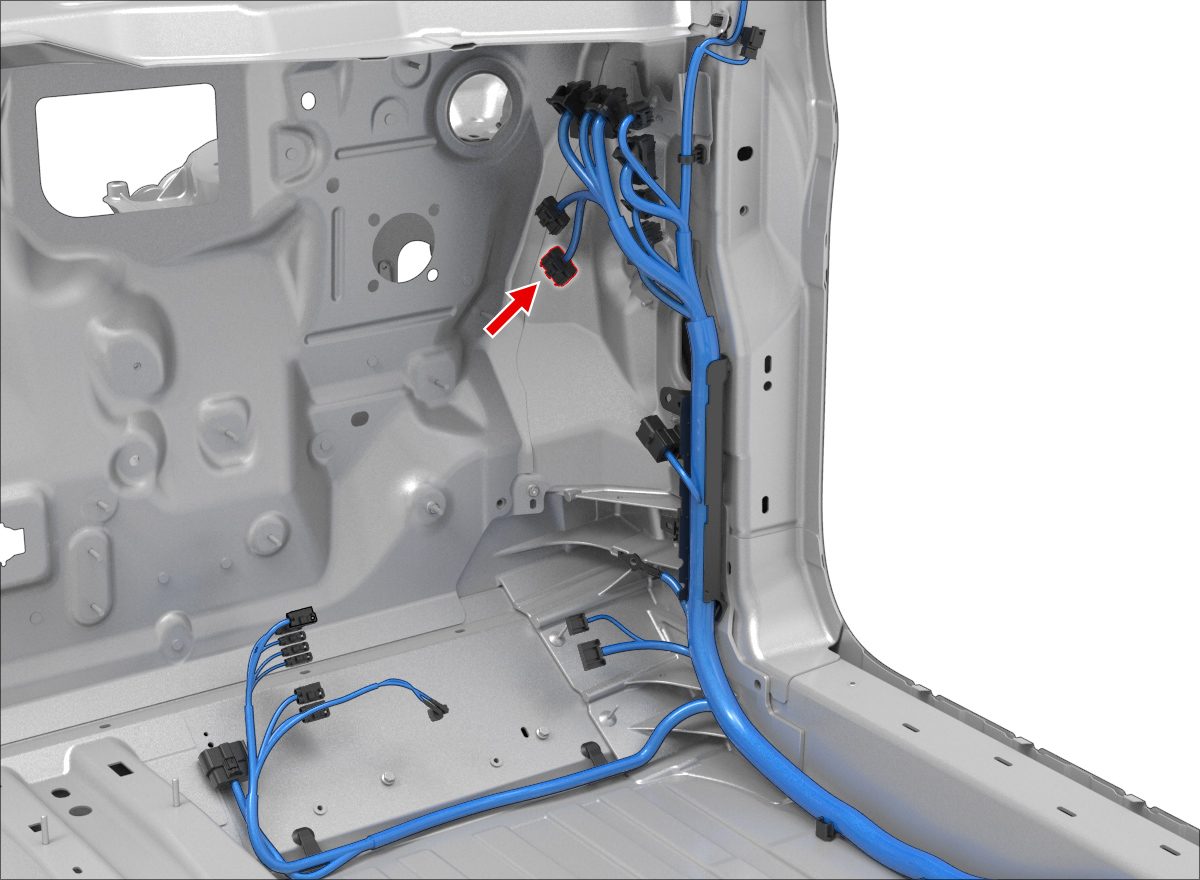

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072405	1.2x0.6F	VT	1.00			X050B	5
2	DELPHI	35410019	1.2x0.6F	GY	0.35			X488	14
3	DELPHI	35410019	1.2x0.6F	VT	0.35			X488	16
4	DELPHI	35410019	1.2x0.6F	RD	0.35			X996F	7
5	DELPHI	35410019	1.2x0.6F	GN	0.35			X996F	8
6	DELPHI	35410019	1.2x0.6F	YE	0.35			X996F	17
7	DELPHI	35410019	1.2x0.6F	BN	0.35			X996F	18
8	DELPHI	35410019	1.2x0.6F	GN	0.35			X488	2
9	DELPHI	35072403	1.2x0.6F	BU	0.50			X993M	10
10	DELPHI	35072403	1.2x0.6F	YE	0.50			X993M	11
11	DELPHI	35072403	1.2x0.6F	YE	0.50			X997F	15
12	DELPHI	35410019	1.2x0.6F	VT/WH	0.35
13	DELPHI	35410019	1.2x0.6F	VT	0.35
14	DELPHI	35410019	1.2x0.6F	GN/WH	0.35			X050A	24
15	DELPHI	35410019	1.2x0.6F	GN	0.35			X050A	25
16	DELPHI	35072403	1.2x0.6F	BU	0.50			X171	11
17	DELPHI	35072403	1.2x0.6F	WH	0.50			X171	12
18	DELPHI	35410019	1.2x0.6F	BU	0.35			X490	6
19	DELPHI	35410019	1.2x0.6F	WH	0.35			X490	5
20	unused
