X015

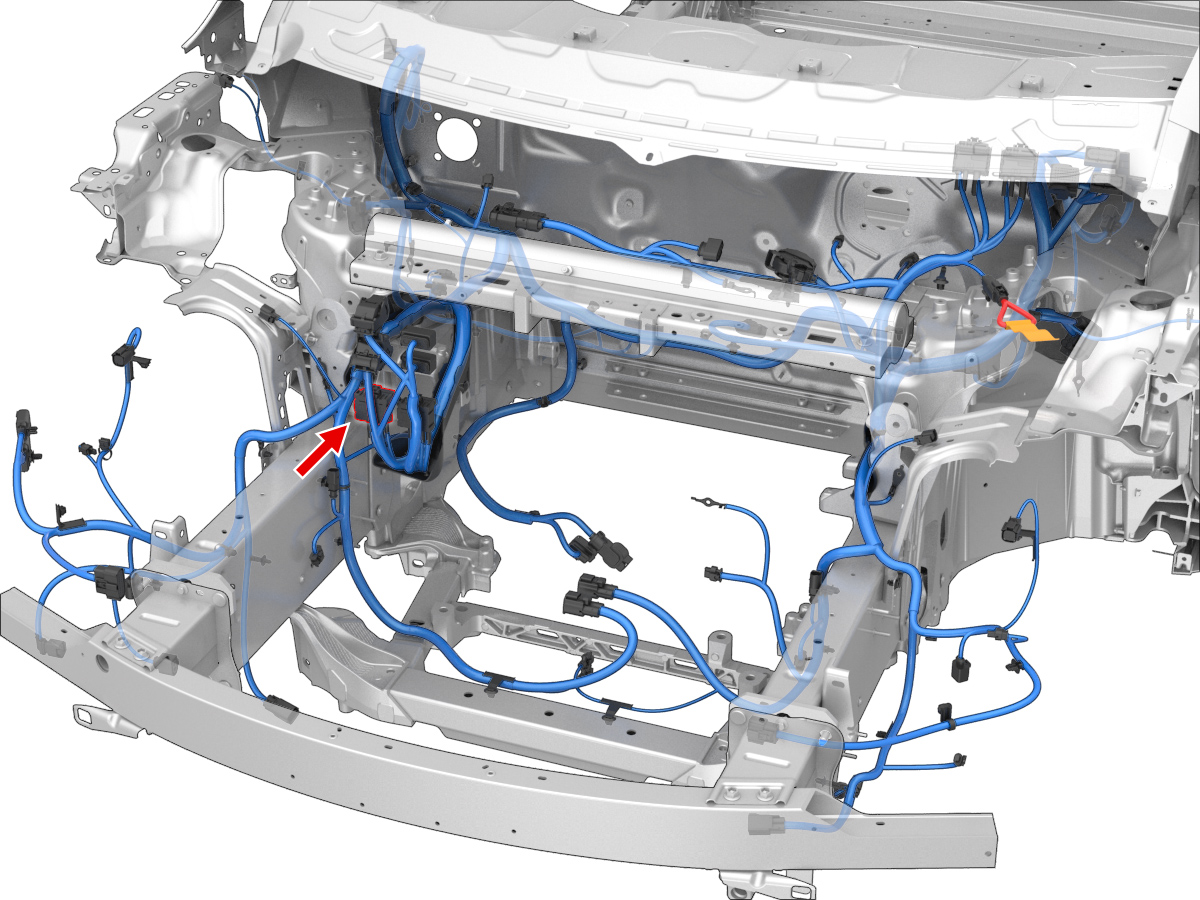

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | LEAR | E02430500 | 6.3x0.8F | RD | 16 | PIA | PIA-SEAL | X153 | 1 |
| 2 | unused | ||||||||
| 3 | LEAR | E02393800 | 14.5x0.8F | RD | 30 | PIA | PIA-SEAL | X024 | 3 |
