Spoiler - Rear (Remove and Replace)

Correction code 12220402 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Special tool required for this procedure: 1694265-00-A Carbon Fiber Spoiler Jig

  • 2023-5-8: Added special tool.

Remove

  1. Use a towel and/or compressed air to clean the area surrounding the spoiler.
    Warning
    To avoid personal injury, eye protection must be worn while using compressed air.

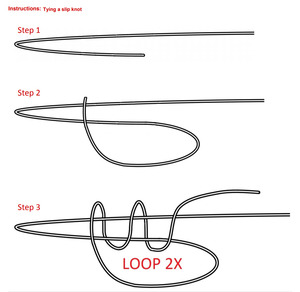

  2. Assemble the badge removal kit by cutting an approximately 24 inch section of fishing line and connecting each end of the fishing line to a handle using a knot.

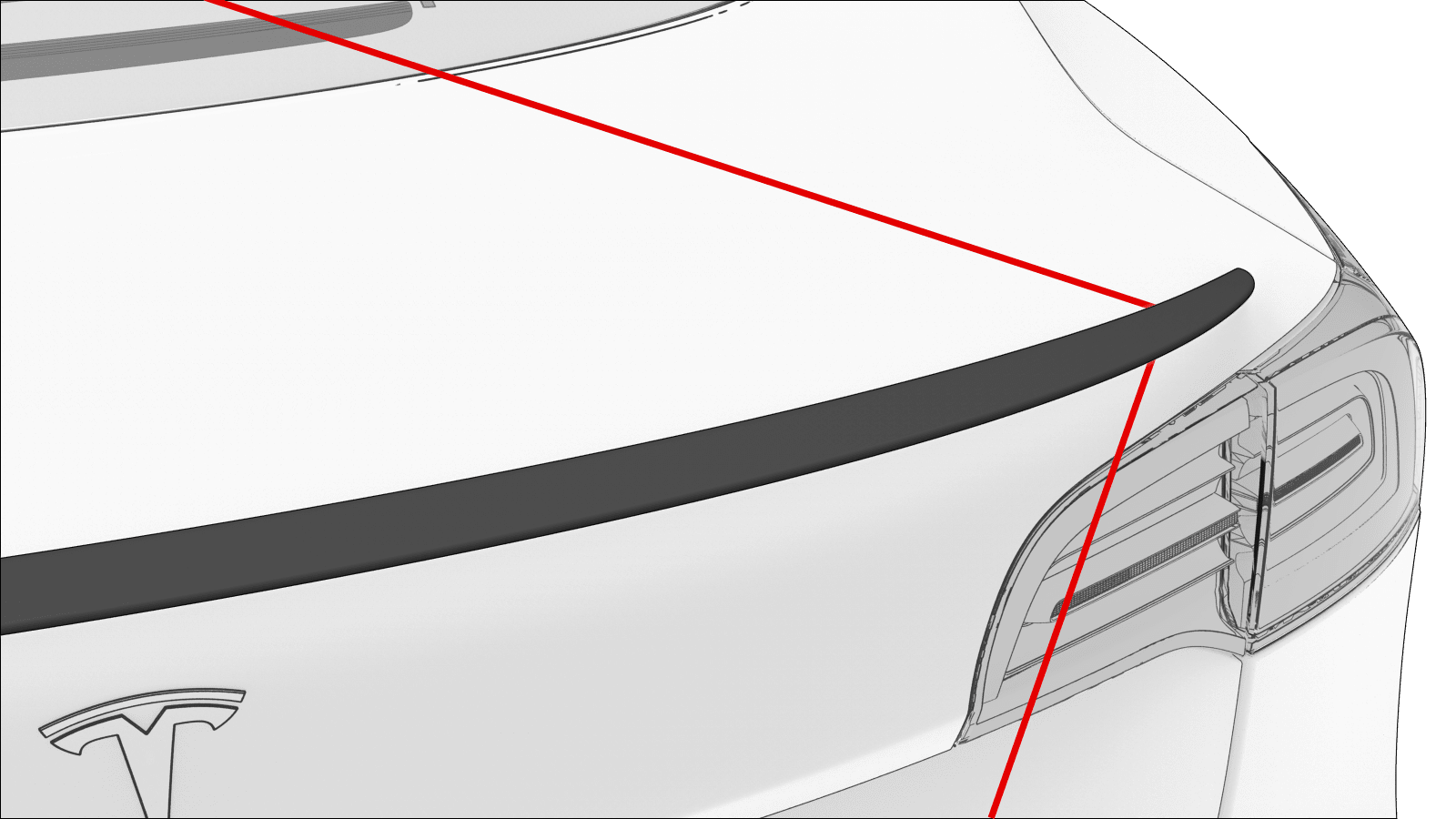

  3. Starting from one end of the spoiler, carefully use the badge removal kit to release the spoiler from the trunk.
    CAUTION
    Do not damage the paint.

Install

  1. Remove all adhesive from the liftgate, and clean the spoiler installation surface with isopropyl alcohol (IPA) wipes and allow it to dry before continuing.
    Note
    If the area requires any paint correction, request assistance from shop detailer before installation of the rear spoiler.
  2. Secure the spoiler jig special tool (1694265-00-A) onto the liftgate.
    Note
    Line up jigs with the edges of the liftgate, and then use masking tape to secure the jigs as needed.
  3. Perform a dry fit of the rear spoiler.
    Note
    The rear spoiler should line up with reference markings on the jigs. Adjust the jigs for a centered installation of the spoiler.
  4. Remove the adhesive backing from the rear spoiler, carefully line up the spoiler to the jigs, and then apply pressure from the center outwards.
    Note
    Verify the spoiler is fully adhered to the liftgate.
  5. Remove the spoiler alignment jigs.
  6. Verify the rear spoiler is properly installed.
    Note
    Wipe away any excess debris with an IPA wipe.
