X905F

Tesla Part Number

1494976-00-A

Connector

DELPHI 33250071

Color

BK

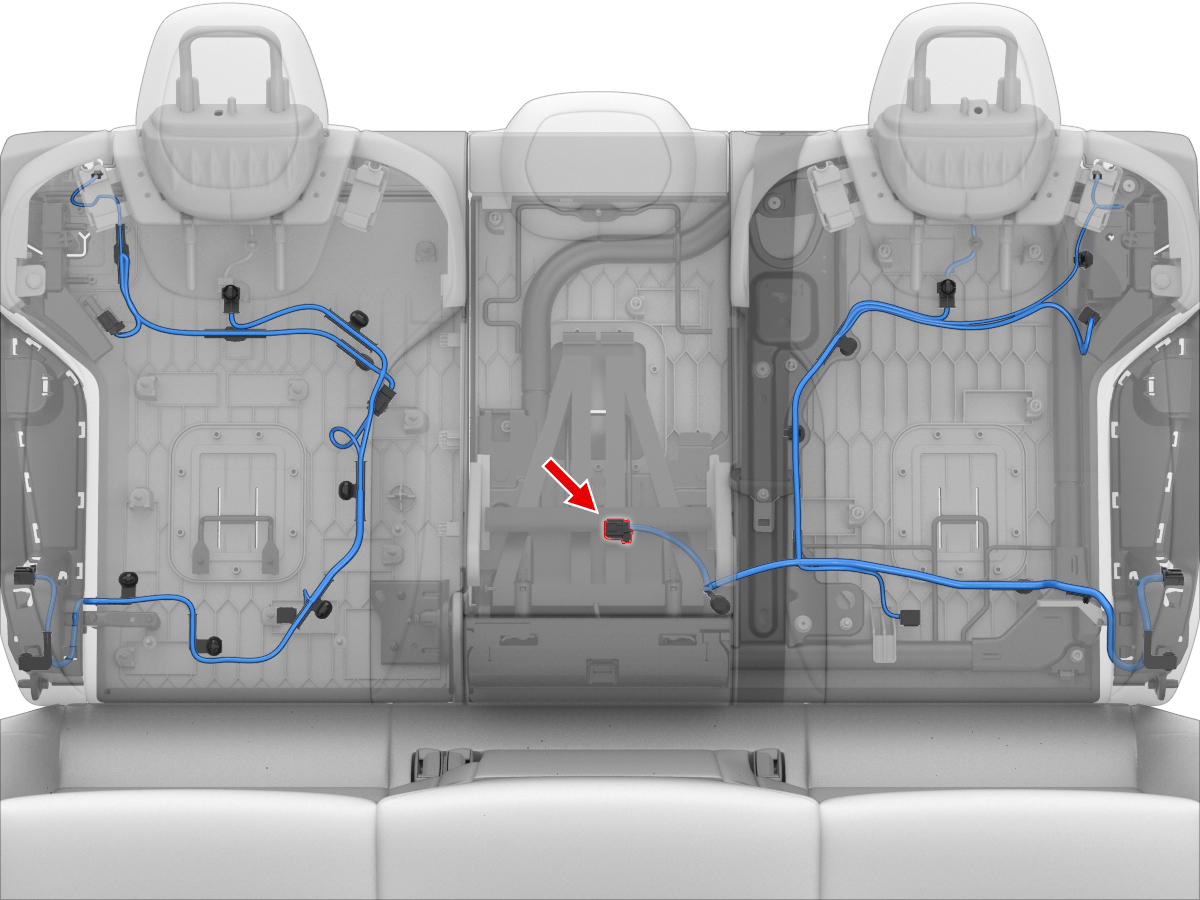

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072404	1.2x0.6F	RD	0.75			X935F	12
2	DELPHI	35072404	1.2x0.6F	BK	0.75
3	DELPHI	35410019	1.2x0.6F	GN	0.35			X935F	13
4	unused
5	DELPHI	35410019	1.2x0.6F	GN	0.35			X935F	6
6	DELPHI	35410019	1.2x0.6F	WH	0.35			X935F	7
7	DELPHI	35410019	1.2x0.6F	VT	0.35			X935F	15
8	DELPHI	35410019	1.2x0.6F	BN	0.35
9	DELPHI	35410019	1.2x0.6F	BU	0.35			X935F	5
10	DELPHI	35410019	1.2x0.6F	BN	0.35
11	unused
12	unused
