X842

Tesla Part Number
1073368-01-A
Connector
ROSENBERGER 59Z006-T00-B
Color
WH

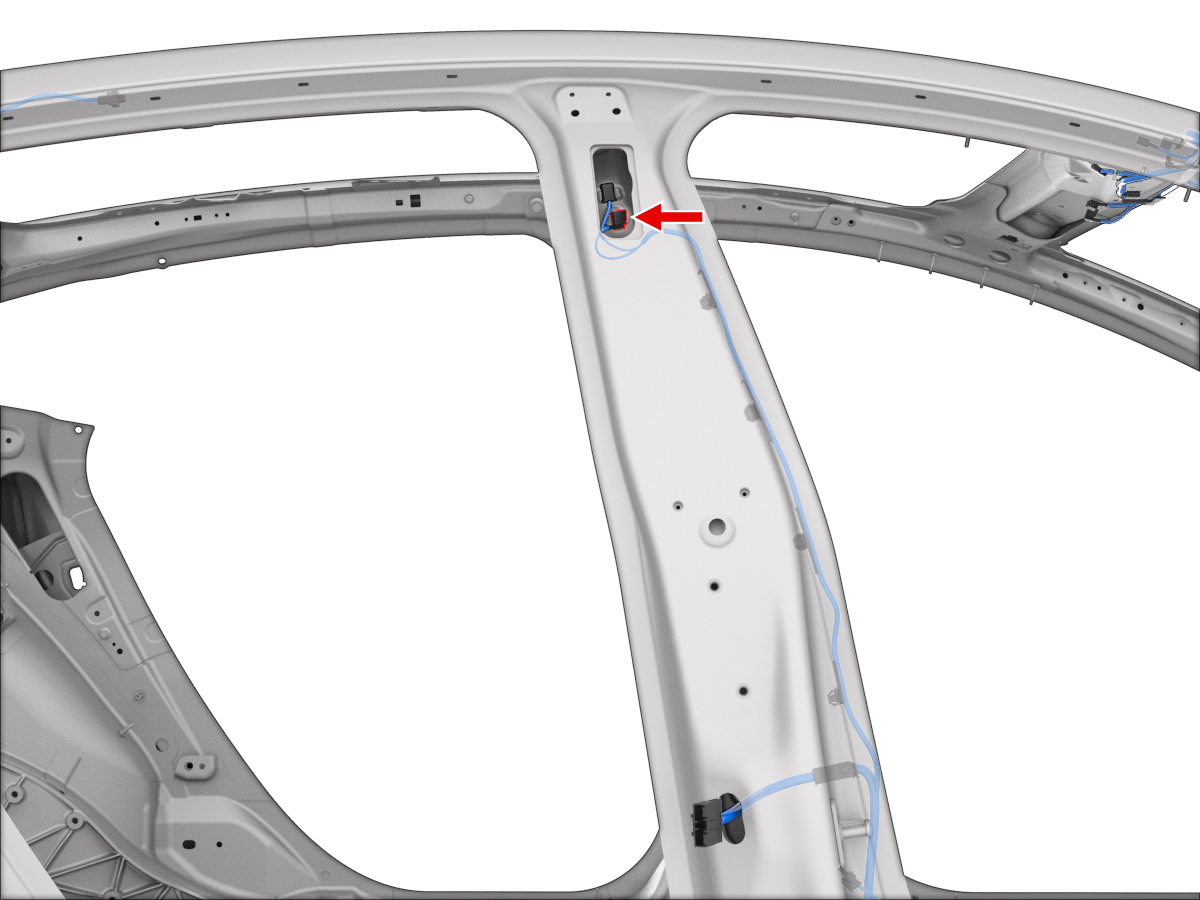

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59K2DV-102A4COAX-FBKRG316X8352
