X024

Tesla Part Number
1569620-01-B
Connector
SUZHOU-RECODEAL 6.700.185126R
Color
BU

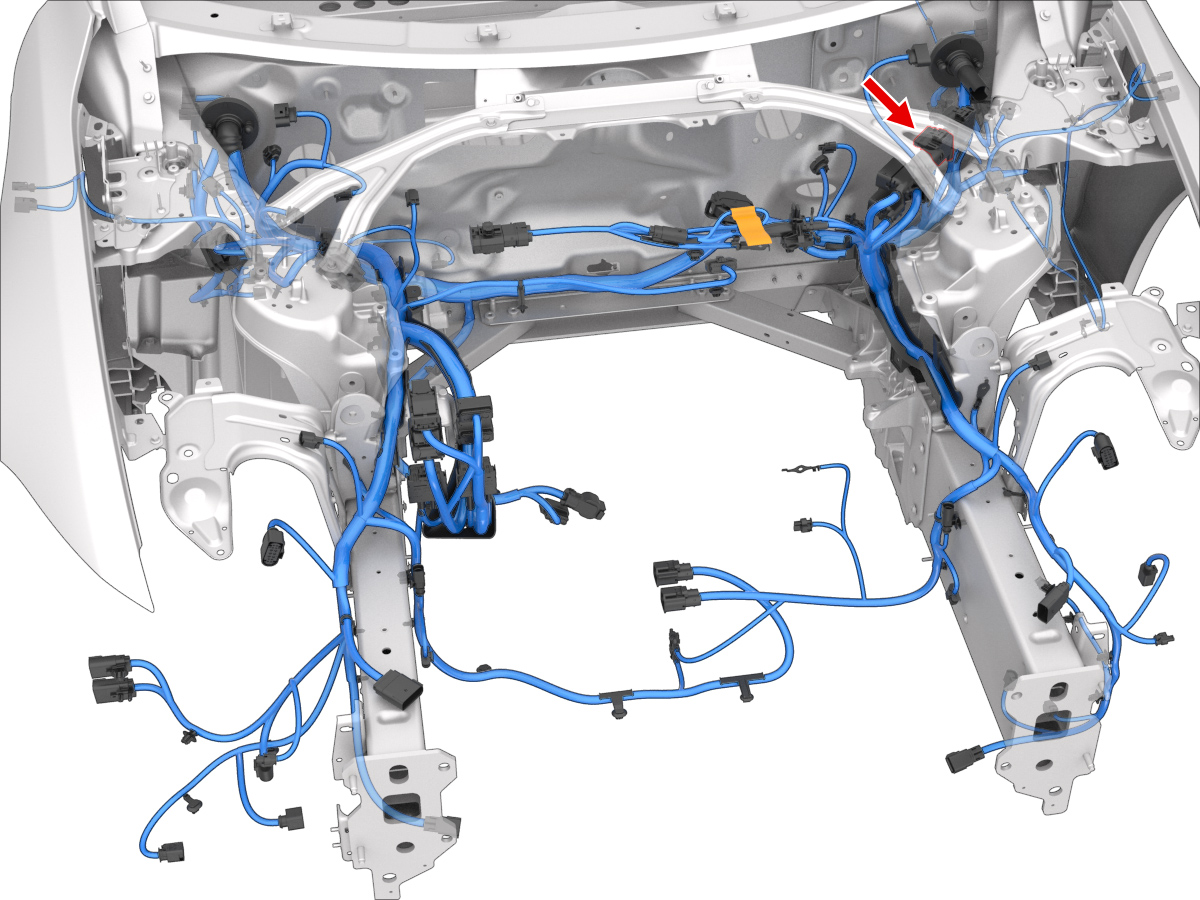

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1LEARE024305006.3x0.8FRD16PIAPIA-SEALX0361
2unused
3LEARE0239380014.5x0.8FRD30PIAPIA-SEALX0153
