X549

Tesla Part Number
1015004-00-A
Connector
AMP 1-1718333-1
Color
BK

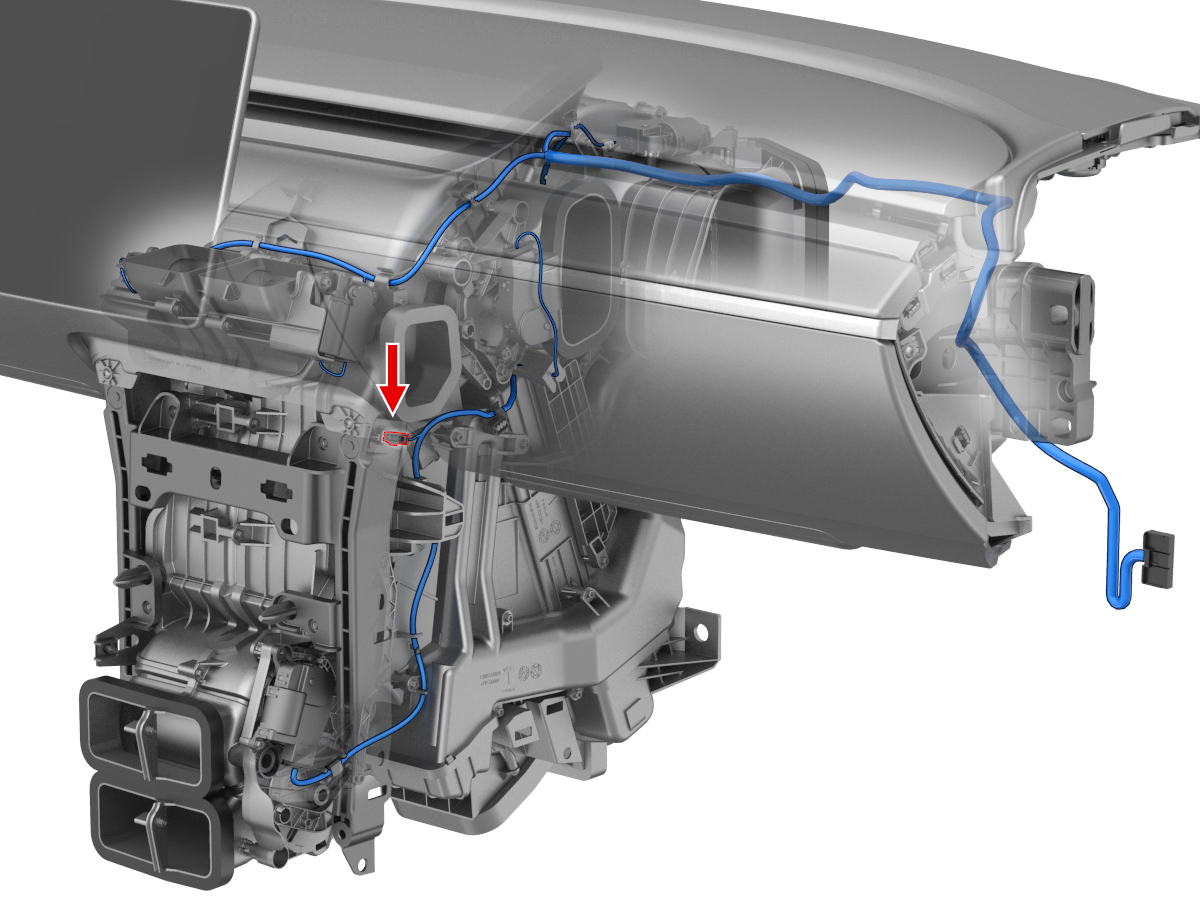

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-928999-10.63x0.63FBU0.35
2AMP5-928999-10.63x0.63FBN/BU0.35X0587
