X021

Tesla Part Number

1504799-01-A

Connector

DELPHI 13648596

Color

BK

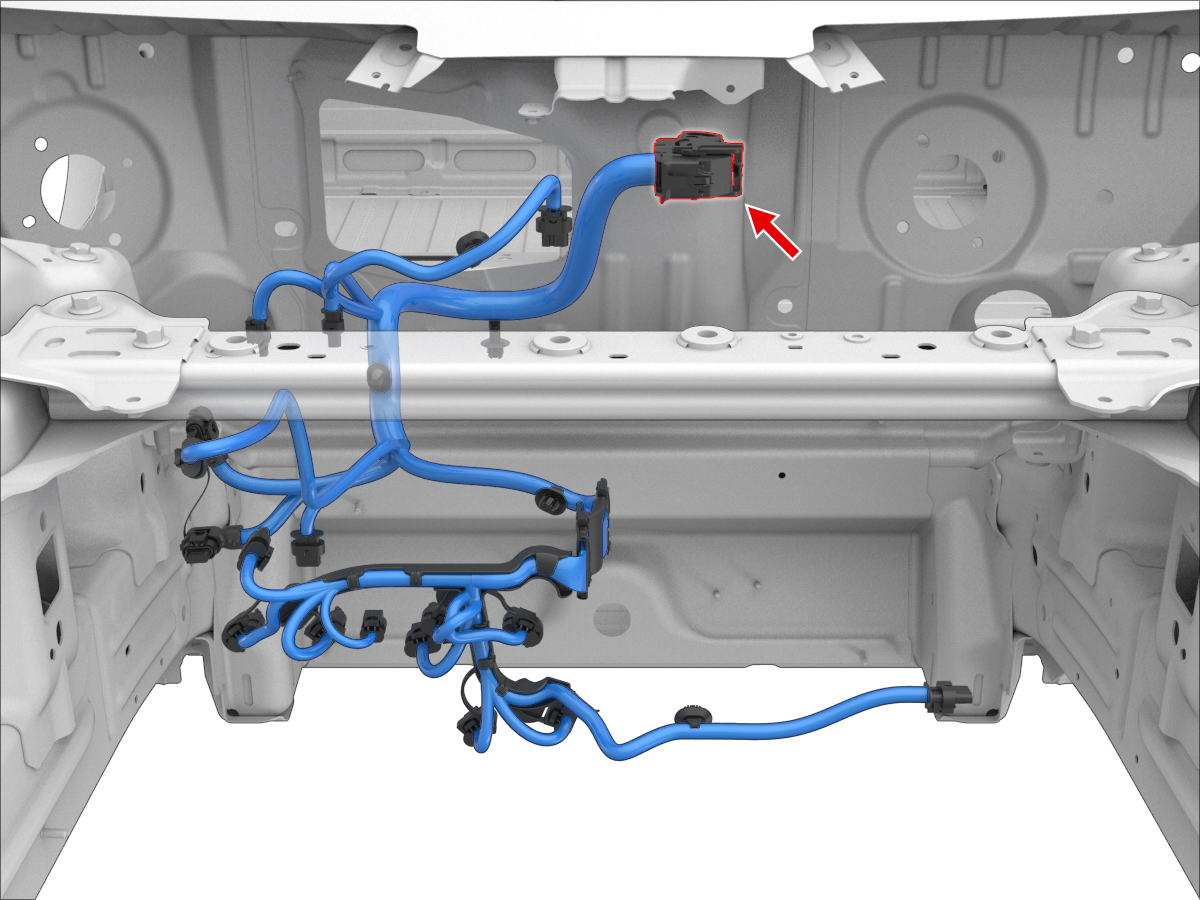

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
A1	DELPHI	13648598	0.64x0.64F	RD	0.50	TESLA	MAT-120-260	X500	2
A2	DELPHI	13648598	0.64x0.64F	YE	0.50	TESLA	MAT-120-260	X499	2
A3	DELPHI	13648598	0.64x0.64F	BN	0.50	TESLA	MAT-120-260	X504	2
A4	DELPHI	13648598	0.64x0.64F	VT	0.50	TESLA	MAT-120-260	X505	2
B1	DELPHI	13648598	0.64x0.64F	YE	0.50	TESLA	MAT-120-260	X500	4
B2	DELPHI	13648598	0.64x0.64F	VT	0.50	TESLA	MAT-120-260	X499	4
B3	DELPHI	13648598	0.64x0.64F	GY	0.50	TESLA	MAT-120-260	X504	4
B4	DELPHI	13648598	0.64x0.64F	RD	0.50	TESLA	MAT-120-260	X505	4
C1	DELPHI	13648598	0.64x0.64F	BU	0.50	TESLA	MAT-120-260	X500	1
C2	DELPHI	13648598	0.64x0.64F	TN	0.50	TESLA	MAT-120-260	X499	1
C3	DELPHI	13648598	0.64x0.64F	GN	0.50	TESLA	MAT-120-260	X504	1
C4	DELPHI	13648598	0.64x0.64F	WH	0.50	TESLA	MAT-120-260	X505	1
D1	DELPHI	13648598	0.64x0.64F	BK	0.50	TESLA	MAT-120-260	X500	3
D2	DELPHI	13648598	0.64x0.64F	BU	0.50	TESLA	MAT-120-260	X499	3
D3	DELPHI	13648598	0.64x0.64F	YE	0.50	TESLA	MAT-120-260	X504	3
D4	DELPHI	13648598	0.64x0.64F	BN	0.50	TESLA	MAT-120-260	X505	3
E1	DELPHI	13648598	0.64x0.64F	VT	0.50	TESLA	MAT-120-260	X517	1
E2	DELPHI	13648598	0.64x0.64F	YE	0.50	TESLA	MAT-120-260	X513	2
E3	unused
E4	DELPHI	13648598	0.64x0.64F	WH	0.50	TESLA	MAT-120-260	X503	2
F1	DELPHI	13648598	0.64x0.64F	WH	0.50	TESLA	MAT-120-260	X517	2
F2	DELPHI	13648598	0.64x0.64F	BK	0.50	TESLA	MAT-120-260	X529	4
F3	DELPHI	13648598	0.64x0.64F	WH	0.50	TESLA	MAT-120-260	X513	3
F4	DELPHI	13648598	0.64x0.64F	RD	0.50	TESLA	MAT-120-260	X503	4
G1	DELPHI	13648598	0.64x0.64F	YE	0.50	TESLA	MAT-120-260	X518	1
G2	DELPHI	13648598	0.64x0.64F	GN	0.50	TESLA	MAT-120-260	X533	2
G3	DELPHI	13648598	0.64x0.64F	BU	0.50	TESLA	MAT-120-260	X529	1
G4	DELPHI	13648598	0.64x0.64F	BU	0.50	TESLA	MAT-120-260	X503	1
H1	DELPHI	13648598	0.64x0.64F	RD	0.50	TESLA	MAT-120-260	X518	2
H2	DELPHI	13648598	0.64x0.64F	VT	0.50	TESLA	MAT-120-260	X533	3
H3	unused
H4	DELPHI	13648598	0.64x0.64F	YE	0.50	TESLA	MAT-120-260	X503	3
J1	DELPHI	13648598	0.64x0.64F	BN	0.50	TESLA	MAT-120-260	X513	4
J2	DELPHI	13648598	0.64x0.64F	BK	0.50	TESLA	MAT-120-260	X533	4
J3	DELPHI	13648598	0.64x0.64F	WH	0.50	TESLA	MAT-120-260	X519	4
J4	DELPHI	13648598	0.64x0.64F	GN	0.50	TESLA	MAT-120-260	X502	2
K1	DELPHI	13648598	0.64x0.64F	VT	0.50	TESLA	MAT-120-260	X513	1
K2	DELPHI	13648598	0.64x0.64F	BU	0.50	TESLA	MAT-120-260	X533	1
K3	DELPHI	13648598	0.64x0.64F	RD	0.50	TESLA	MAT-120-260	X519	3
K4	DELPHI	13648598	0.64x0.64F	WH	0.50	TESLA	MAT-120-260	X502	4
L1	DELPHI	13648598	0.64x0.64F	WH	0.50	TESLA	MAT-120-260	X511	1
L2	DELPHI	13648598	0.64x0.64F	BK	0.50	TESLA	MAT-120-260	X534	2
L3	DELPHI	13648598	0.64x0.64F	VT	0.50	TESLA	MAT-120-260	X516	1
L4	DELPHI	13648598	0.64x0.64F	BU	0.50	TESLA	MAT-120-260	X502	1
M1	DELPHI	13648598	0.64x0.64F	GN	0.50	TESLA	MAT-120-260	X511	4
M2	DELPHI	13648598	0.64x0.64F	BU	0.50	TESLA	MAT-120-260	X534	3
M3	DELPHI	13648598	0.64x0.64F	WH	0.50	TESLA	MAT-120-260	X516	2
M4	DELPHI	13648598	0.64x0.64F	GY	0.50	TESLA	MAT-120-260	X502	3
N1	DELPHI	13648598	0.64x0.64F	BN	0.50	TESLA	MAT-120-260	X534	4
N2	unused
N3	DELPHI	13648598	0.64x0.64F	TN	0.50	TESLA	MAT-120-260	X519	1
N4	DELPHI	13648598	0.64x0.64F	WH	0.50	TESLA	MAT-120-260	X529	2
O1	DELPHI	13648598	0.64x0.64F	YE	0.50	TESLA	MAT-120-260	X534	1
O2	unused
O3	DELPHI	13648598	0.64x0.64F	VT	0.50	TESLA	MAT-120-260	X519	2
O4	DELPHI	13648598	0.64x0.64F	YE	0.50	TESLA	MAT-120-260	X529	3
P1	DELPHI	13741954	1.5x0.8F	GY	1.00	TESLA	MAT-120-260
P2	DELPHI	13741954	1.5x0.8F	BK	1.00	TESLA	MAT-120-260
P3	DELPHI	13741954	1.5x0.8F	GN	1.00	TESLA	MAT-120-260	X510	1
P4	DELPHI	13741954	1.5x0.8F	WH	1.00	TESLA	MAT-120-260	X510	2
Q1	DELPHI	13741954	1.5x0.8F	BU	1.00	TESLA	MAT-120-260	X508	3
Q2	DELPHI	13741954	1.5x0.8F	YE	1.00	TESLA	MAT-120-260	X508	2
Q3	DELPHI	13741954	1.5x0.8F	RD	1.00	TESLA	MAT-120-260	X508	1
Q4	DELPHI	13741954	1.5x0.8F	VT	1.00	TESLA	MAT-120-260	X510	3
