X011

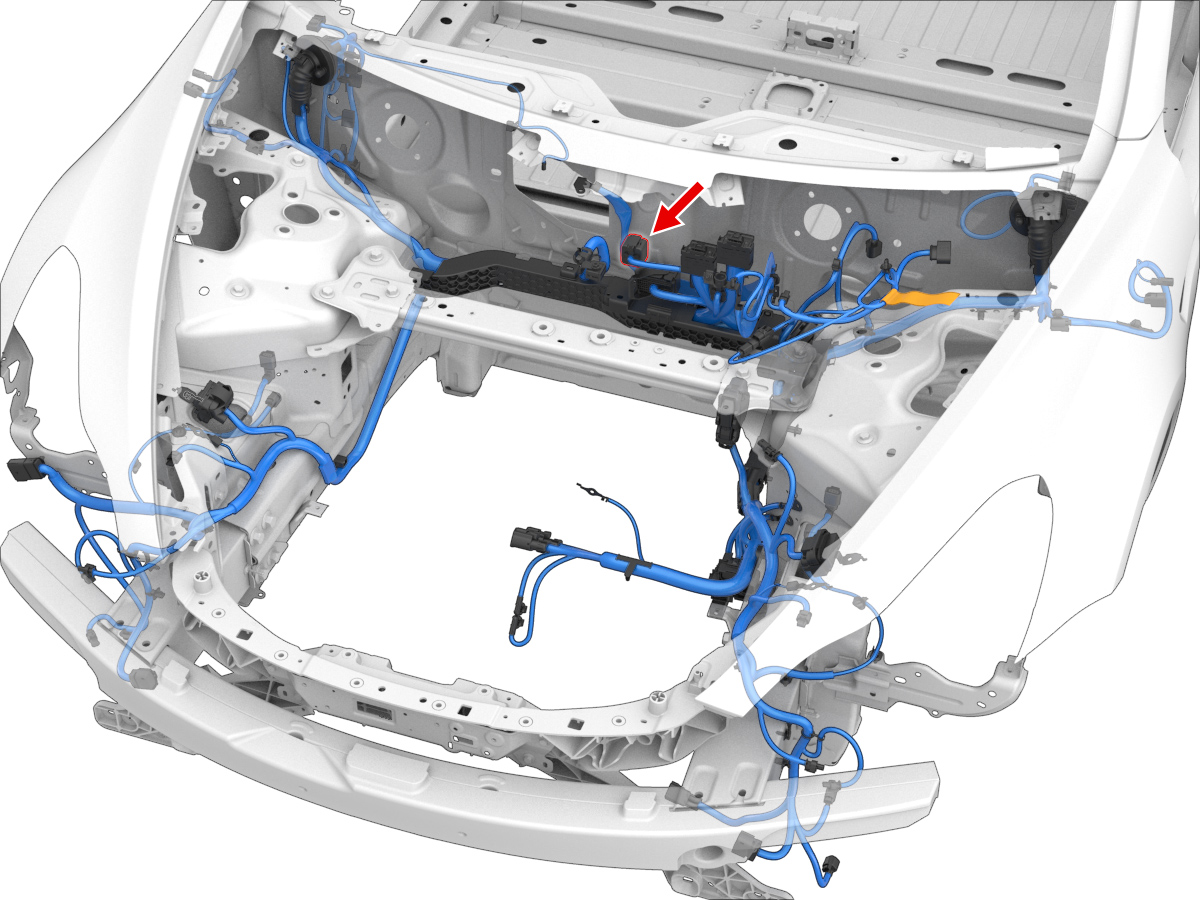

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 10779624 | 6.3 | BU | 5.00 | DELPHI | 12186636 | X525 | 3 |
| 2 | DELPHI | 10779624 | 6.3 | RD | 5.00 | DELPHI | 12186636 | X525 | 1 |
| 3 | unused | ||||||||
| 4 | DELPHI | 12186637 | 6.3 | VT | 0.50 | DELPHI | 10788269 | ||
| 5 | DELPHI | 10779624 | 6.3 | YE | 5.00 | DELPHI | 12186636 | X525 | 2 |
| 6 | DELPHI | 15340695 | 6.3 | WH | 2.00 | DELPHI | 15443869 | ||
| 7 | DELPHI | 10748126 | 6.3 | BN | 4 | DELPHI | 12186636 | X151 | 1 |
