G011

Tesla Part Number

1616205-00-B

Connector

KSE K21F00511

Color

BK

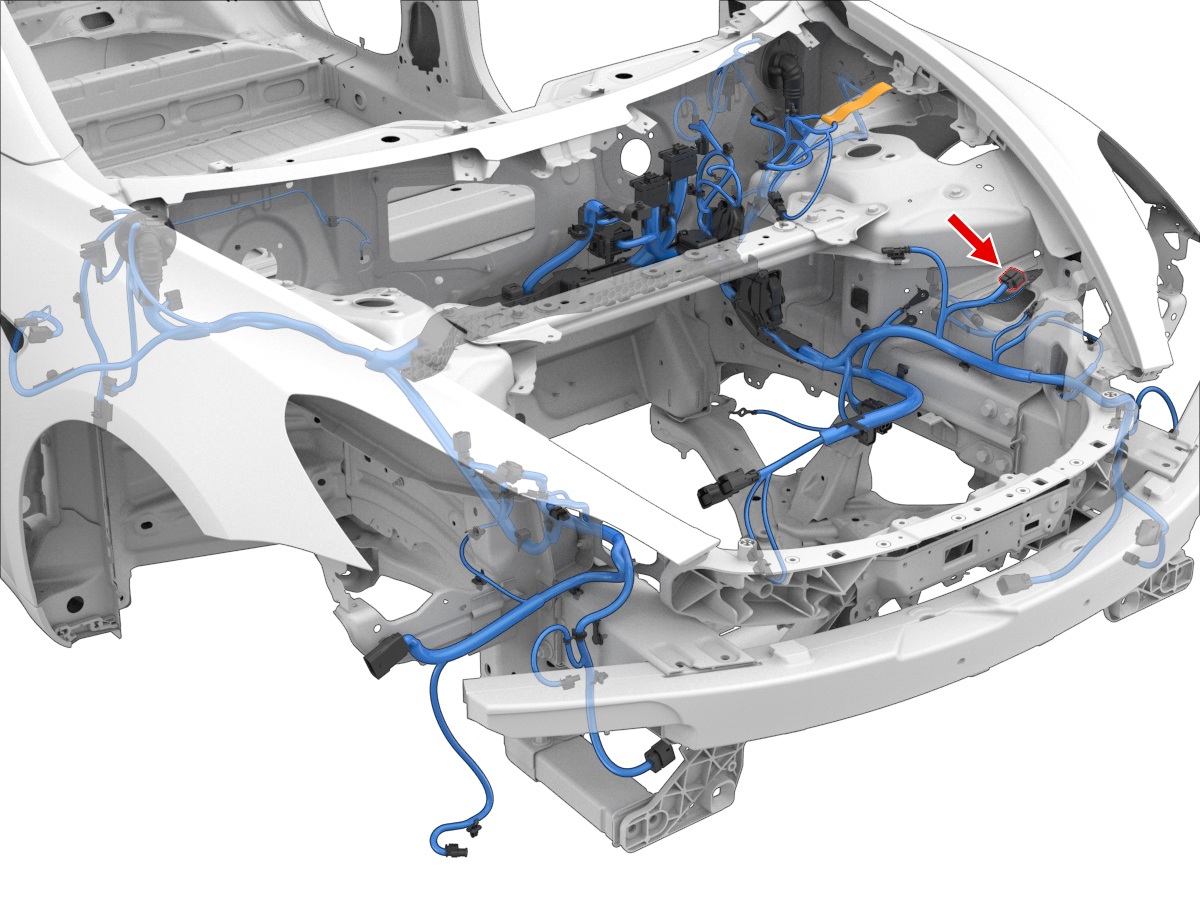

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	10780234	9.5FS	BK	10.00	DELPHI	10889241	G013	1
2	DELPHI	35138800	1.5	BK	0.35	DELPHI	13582731	X268	2
3	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X260	3
4	DELPHI	35138798	1.5	BK	1.50	DELPHI	13582732	X911F_1	8
5	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X198	2
6	DELPHI	33351050	6.35F	BK	4.00	KSE	K60F00601	X532	1
7	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X199	2
8	unused
9	DELPHI	35138799	1.5	BK	0.75	DELPHI	13582730	X304	2
10	DELPHI	35138800	1.5	BK	0.50	DELPHI	13582731	X302	A
11	DELPHI	15543468	2.8x0.8F	BK	0.75	DELPHI	13643552	X301A	1
12	DELPHI	33350989	2.8x0.8F	BK	1.50	DELPHI	13821890	X911F_1	9
13	DELPHI	33350989	2.8x0.8F	BK	1.50	DELPHI	13821890	X151	38
14	DELPHI	33350989	2.8x0.8F	BK	2.50	DELPHI	10810377	X300	3
15	DELPHI	33351050	6.35F	BK	4	KSE	K60F00601	X151	13
