Chin Spoiler Assembly

FRT No: 10010502

    Remove


  1. Raise and support vehicle (refer to procedure).
    2. WARNING: Do not work on an incorrectly supported vehicle.

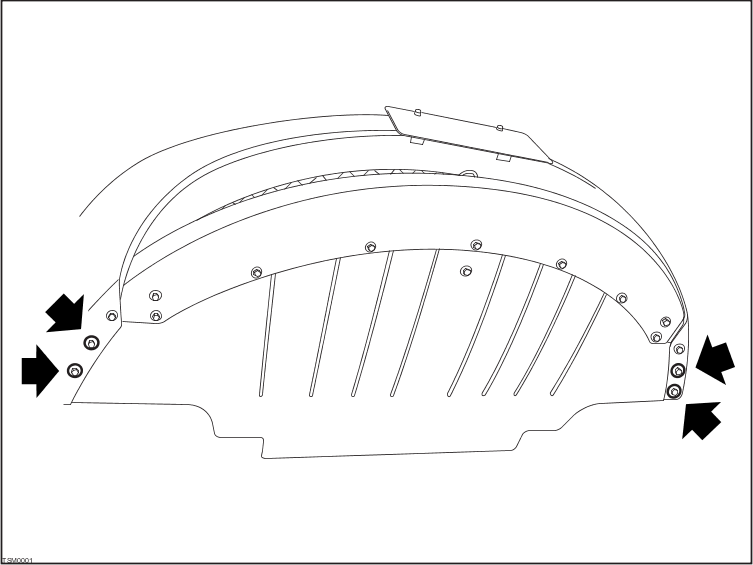

  2. Remove bolts (x4) securing undershield to bumper.

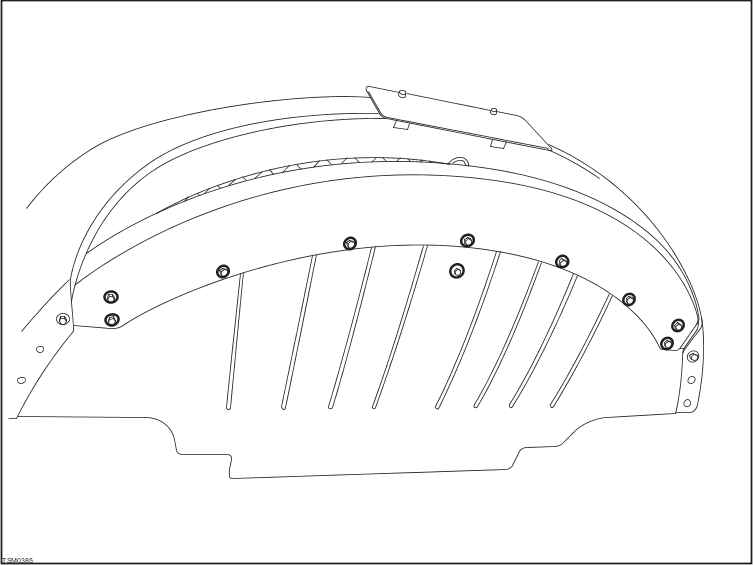

  3. Remove bolts and washers (x10) securing chin spoiler to undershield.

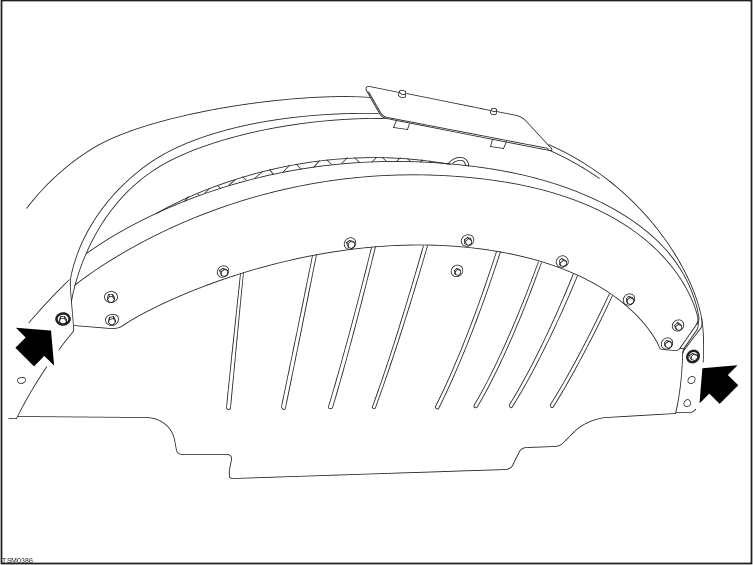

  4. Remove bolts (x2) securing chin spoiler to bumper.


  5. Pull chin spoiler down and forward to release from bumper and undershield.

    Installation


  1. Installation procedure is reverse of removal.
