Raise Vehicle on 2 Post Lift

FRT No: 10040401

    Installation


  1. Remove middle undershield (refer to procedure).
    2. WARNING: Do not work on an incorrectly supported vehicle.



  2. Position vehicle centrally between lift posts.

  3. Position front lifting pads under vehicle chassis where marked on vehicle.

  4. Remove lifting pads from rear lift arms.

  5. Position rear lifting arm under vehicle chassis to approximate position.

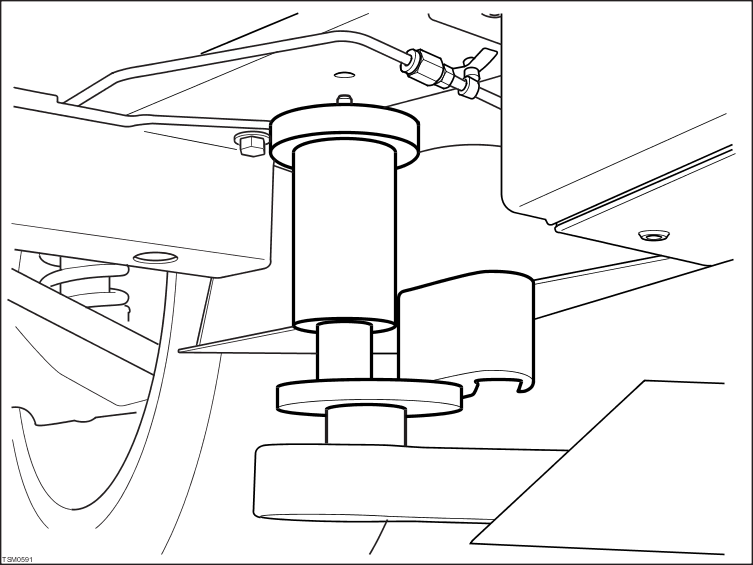

  6. Install rear lifting adaptor 1001010 into chassis location hole. Compress the bottom of lifting adaptor, maneuver lift arm into position and locate lifting adaptor in hole on lift arm.

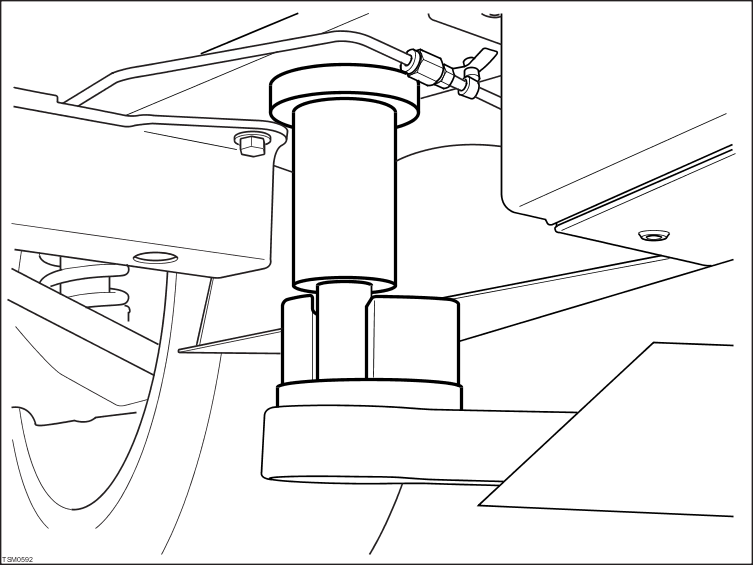

  7. Rotate lifting adaptor collar into position.


  8. Repeat steps above for the other side.

  9. With assistance, raise lift ensuring that lift adaptors are correctly aligned in arms.

    Remove


  1. Removal procedure is reverse of installation.
