Panel - Undershield - Middle

FRT No: 10250702

    Remove


  1. Raise vehicle and position wheels on blocks.

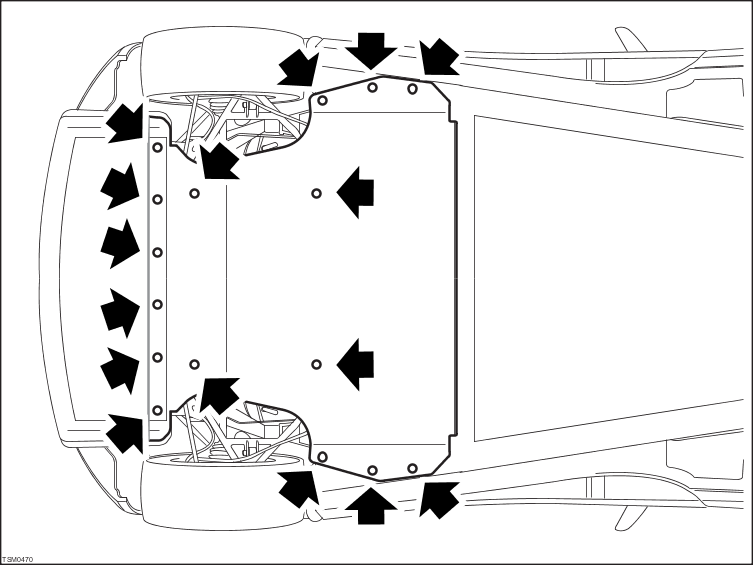

  2. Remove bolts (x16) securing middle undershield to body (torque - 8 Nm).


  3. Remove middle undershield.

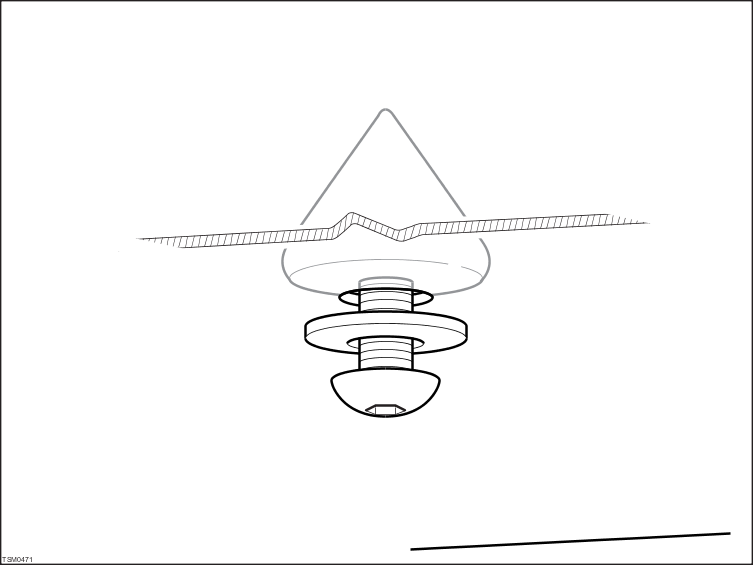

  4. Remove screw securing bump stop to undershield and remove bump stop.

    Installation


  1. Installation procedure reverse of removal.
