Shroud - Steering Column - Lower

FRT No: 14053302

    Remove


  1. Remove upper column shroud (refer to procedure).

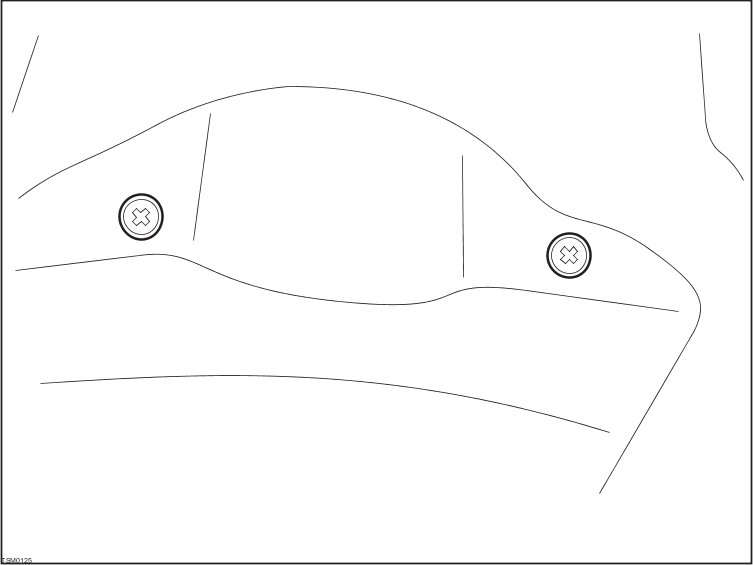

  2. Remove lower screws (x2) securing lower column shroud to column shroud bracket.

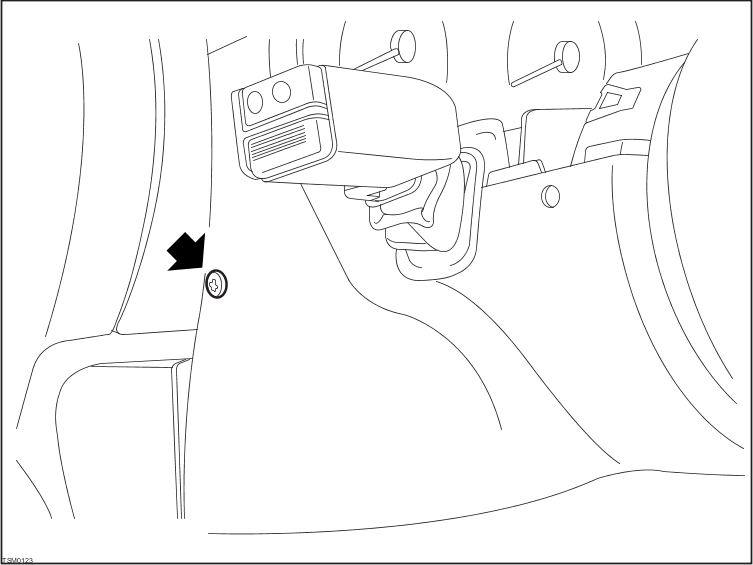

  3. Remove LH upper screw securing lower column shroud to column shroud bracket.


  4. Remove RH upper screw securing lower column shroud to column bracket and release lower column shroud.

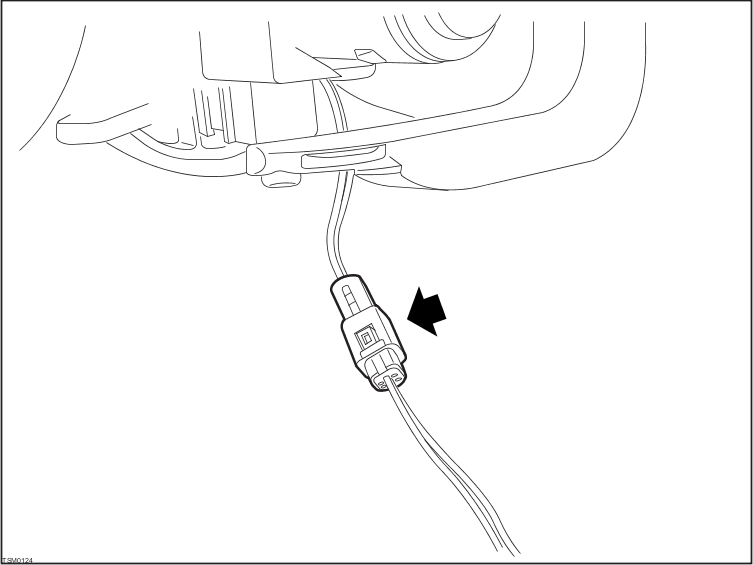

  5. Disconnect trip computer switch connector and remove shroud.

    Installation


  1. Installation procedure is reverse of removal except for the following.

  2. Ensure shroud is installed correctly around column switch gaiters.
