Shroud - Steering Column - Upper

FRT No: 14053702

    Remove


  1. Remove key from starter switch.

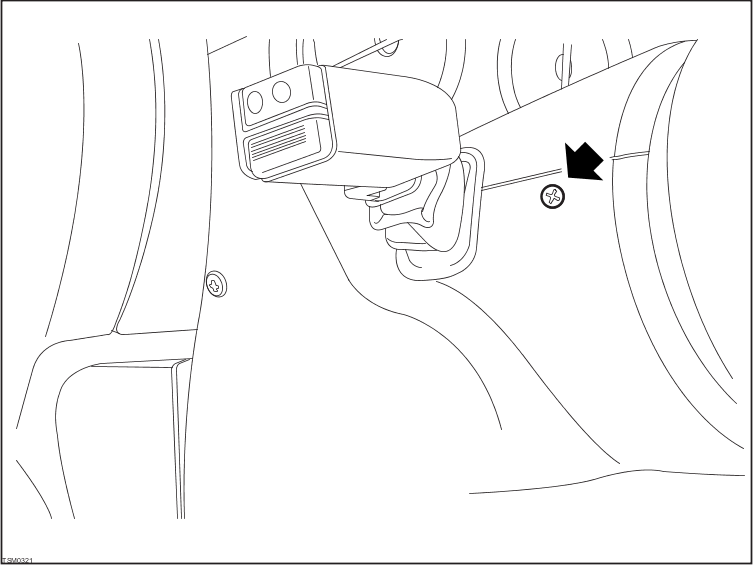

  2. Remove screws (x2) securing upper column shroud to lower column shroud.


  3. Release locating tags (x3) securing upper shroud to lower shroud and instrument pack trim.

  4. Remove upper column shroud.

    Installation


  1. Installation procedure is reverse of removal except for the following.

  2. Ensure shroud is installed correctly around switch gaiters.
