Side Panel - Front - Center Console - LH (Remove and Replace)

Correction code 1519010402 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-11-04: Removed the steps for removing and installing external components to gain access.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Move the LH front seat backward.

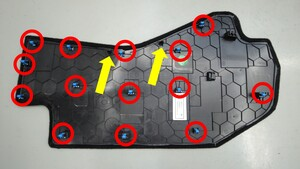

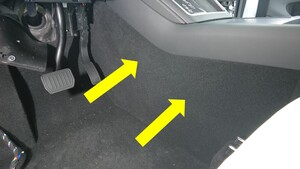

  3. Release the clips (x14), locator pins (x2) that attach the LH center console side panel to the center console, and then remove the side panel from the vehicle.
    CAUTION
    Take care to pull the panel straight away instead of peeling it off from the console to prevent damage.
    Note
    Use a plastic trim tool to release the upper clips, starting from the top edge and work around to release the remaining clips.

Install

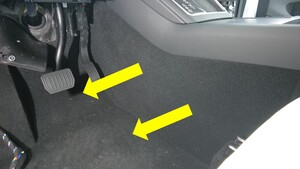

  1. Install the clips (x14), locator pins (x2) that attach the LH center console side panel to the center console.
    Note
    Make sure that all clips are properly engaged.
  2. Move the LH front seat to original position.
  3. Raise the LH front window and close the LH front door.
