Side Panel - Front - Center Console - RH (Remove and Replace)

Correction code 1519010502 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-11-04: Removed the steps for removing and installing external components to gain access.

Remove

  1. Open the RH front door and lower the RH front window.
  2. Move the RH front seat backward.

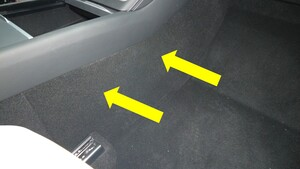

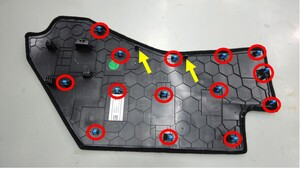

  3. Release the clips (x14), locator pins (x2) that attach the RH center console side panel to the center console, and then remove the side panel from the vehicle.
    CAUTION
    Take care to pull the panel straight away from the console to prevent damage.
    Note
    Use a finger to release the top edge of the panel and then work around to release the remaining clips.

Install

  1. Install the clips (x14), locator pins (x2) that attach the RH center console side panel to the center console.
    Note
    Make sure that all clips are properly engaged.
  2. Move the RH front seat to original position.
  3. Raise the RH front window and close the RH front door.
