X367

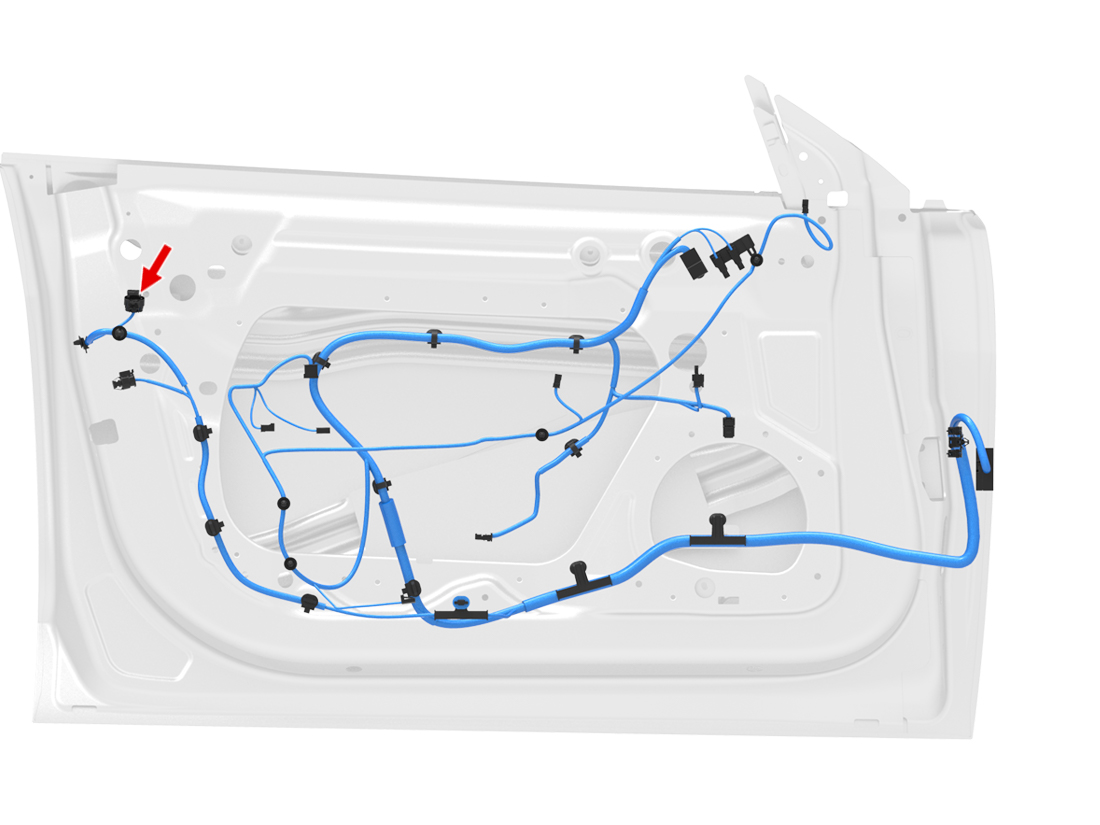

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | AMP | 1418844-1 | 1.2x0.6FS | BU | 0.35 | AMP | 967067-2 | ||
| 3 | unused | ||||||||
| 4 | AMP | 1418844-1 | 1.2x0.6FS | TN | 0.35 | AMP | 967067-2 | ||
