X168

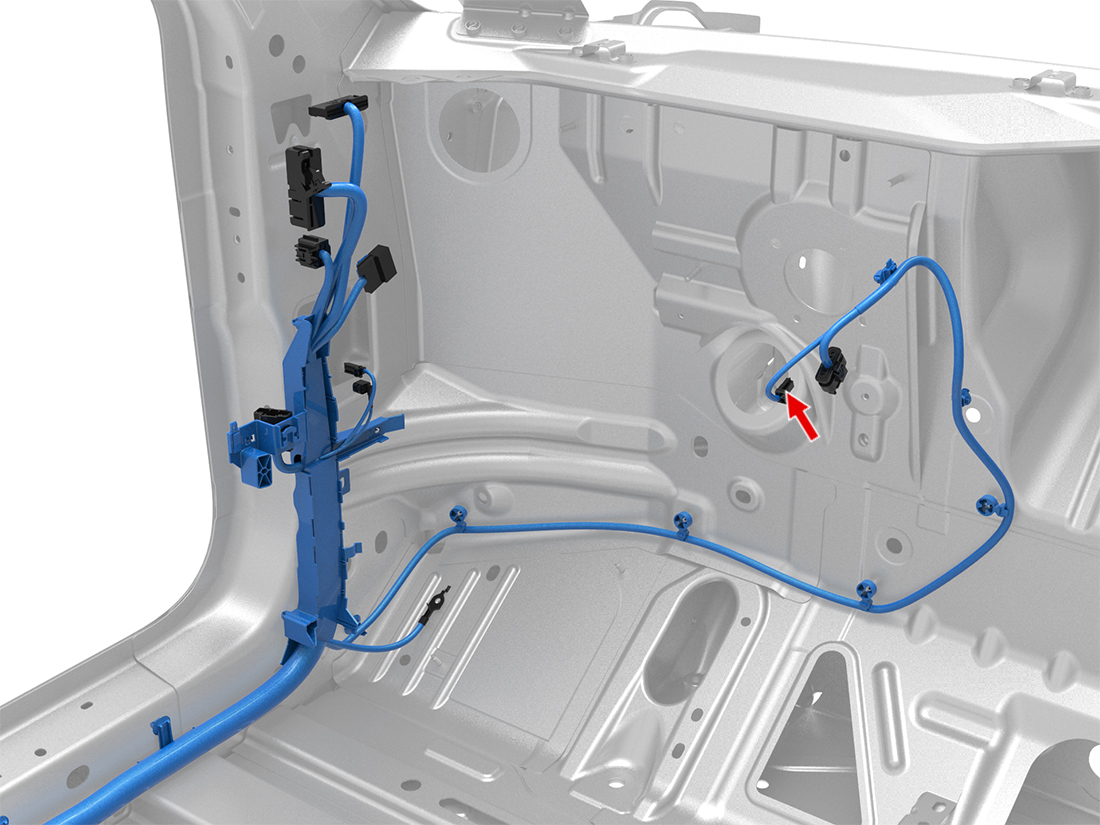

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1123343-1 | 0.64x0.64F | BK | 0.50 | G031 | 1 | ||
| 2 | RD | 0.35 | |||||||
| 3 | AMP | 1123343-1 | 0.64x0.64F | BK | 0.50 | G031 | 1 | ||
| 4 | AMP | 1123343-1 | 0.64x0.64F | BN | 0.35 | X936F | 9 |
