X521

Tesla Part Number
1080640-00-A
Connector
AMP 1-1670918-1
Color
BK

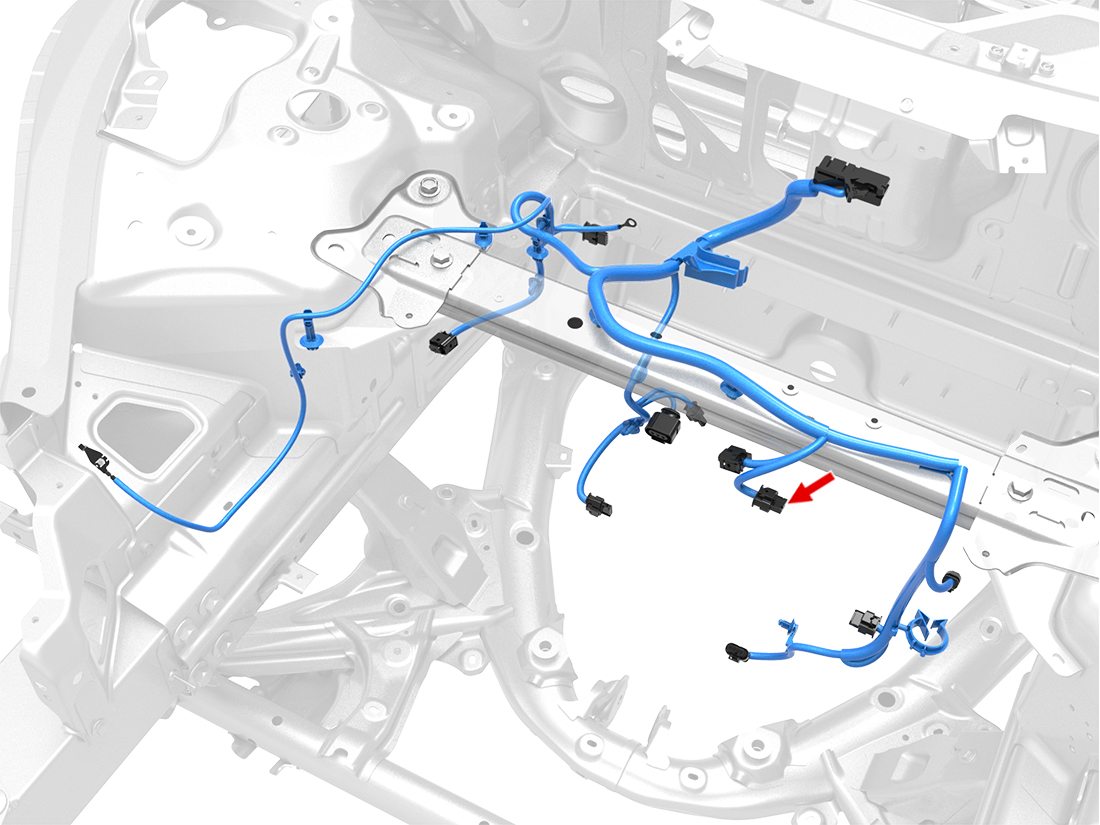

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2141970-11.2x0.6FSYE0.13X02125
2AMP2141970-11.2x0.6FSBU0.13X02126
3AMP2141970-11.2x0.6FSGY0.13X02147
4AMP2141970-11.2x0.6FSBN0.13X02148
