X180

Tesla Part Number

1105386-00-A

Connector

KOSTAL 22400736189

Color

YE

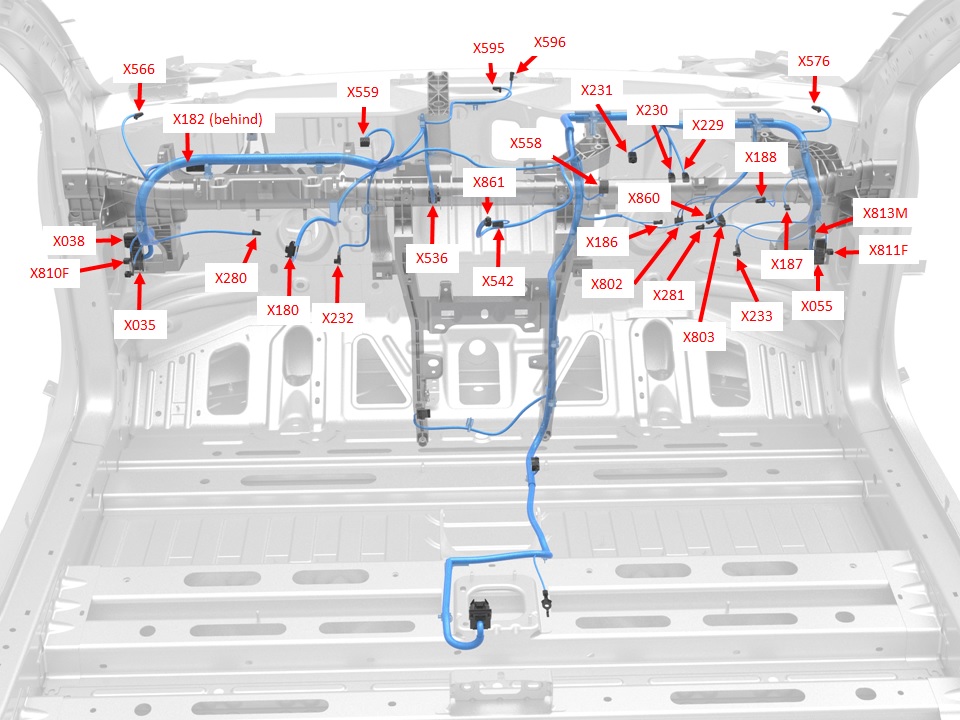

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	KOSTAL	32124734010	1.2x0.6F	GY	0.35			X035	1
2	KOSTAL	32124734010	1.2x0.6F	BU	0.35			X035	4
3	KOSTAL	32124734010	1.2x0.6F	VT	0.35			X035	5
4	KOSTAL	32124734030	1.2x0.6F	BK	0.75
5	unused
6	KOSTAL	32124734030	1.2x0.6F	BK	0.75
7	KOSTAL	32124734030	1.2x0.6F	VT	0.75			X035	23
8	KOSTAL	32124734010	1.2x0.6F	OG	0.35			X200	29
9	KOSTAL	32124734010	1.2x0.6F	WH	0.35			X200	30
10	KOSTAL	32124734010	1.2x0.6F	RD	0.35			X200	23
11	KOSTAL	32124734010	1.2x0.6F	GN	0.35			X200	24
12	KOSTAL	32124734010	1.2x0.6F	YE	0.35			X200	1
13	KOSTAL	32124734010	1.2x0.6F	WH	0.35			X200	2
14	KOSTAL	32124734010	1.2x0.6F	GN	0.35			X035	6
