X2000

Tesla Part Number

1475383-00-A

Connector

BOSCH 1928406052

Color

BK

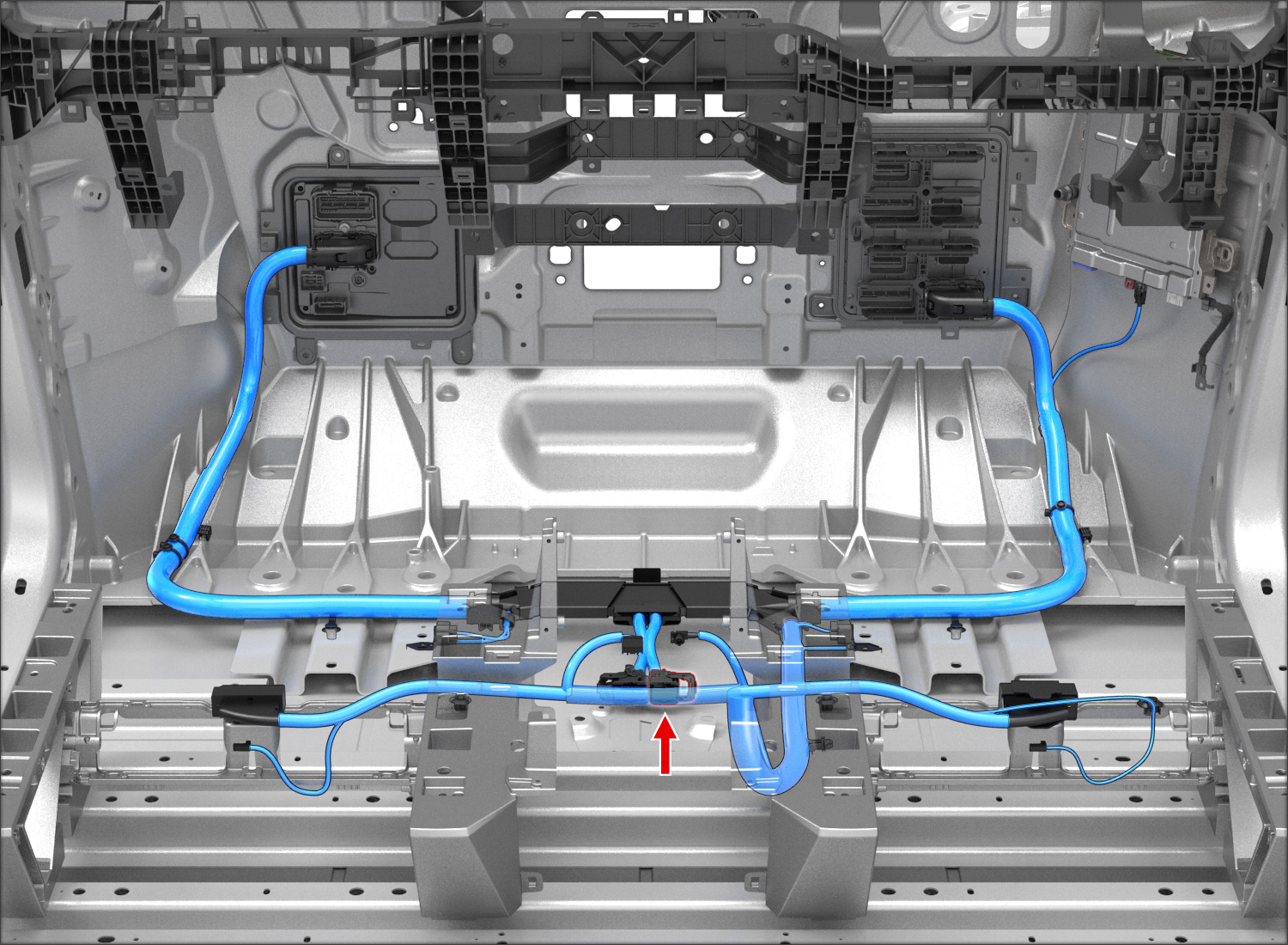

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X0942M	3
2	BOSCH	1928499468	0.50x0.40F	GY/RD	0.35	TESLA	MAT-110-130	X0942M	2
3	BOSCH	1928499468	0.50x0.40F	TN/RD	0.35	TESLA	MAT-110-130	X0940M	2
4	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X0940M	3
5	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X0034	49
6	BOSCH	1928499468	0.50x0.40F	TN/RD	0.35	TESLA	MAT-110-130	X0034	48
7	BOSCH	1928499468	0.50x0.40F	WH/RD	0.35	TESLA	MAT-110-130	X0940M	14
8	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X0940M	13
9	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X0010	39
10	BOSCH	1928499468	0.50x0.40F	PK/RD	0.35	TESLA	MAT-110-130	X0010	40
11	unused
12	unused
13	unused
14	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X0034	25
15	BOSCH	1928499468	0.50x0.40F	GY/RD	0.35	TESLA	MAT-110-130	X0034	24
16	BOSCH	1928499468	0.50x0.40F	YE/RD	0.35	TESLA	MAT-110-130	X0010	42
17	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X0010	41
18	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X0034	51
19	BOSCH	1928499468	0.50x0.40F	PK/RD	0.35	TESLA	MAT-110-130	X0034	50
20	BOSCH	1928499468	0.50x0.40F	GY/RD	0.35	TESLA	MAT-110-130	X0010	38
21	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X0010	37
22	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X0034	29
23	BOSCH	1928499468	0.50x0.40F	WH/RD	0.35	TESLA	MAT-110-130	X0034	28
24	BOSCH	1928499468	0.50x0.40F	YE/RD	0.35	TESLA	MAT-110-130	X0034	26
25	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X0034	27
26	unused
27	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X0034	45
28	unused
29	unused
30	unused
31	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X0940M	6
32	BOSCH	1928499468	0.50x0.40F	PK/RD	0.35	TESLA	MAT-110-130	X0940M	5
33	BOSCH	1928499468	0.50x0.40F	TN/RD	0.35	TESLA	MAT-110-130	X0942M	5
34	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X0942M	6
35	unused
36	unused
37	unused
38	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X0034	59
39	BOSCH	1928499468	0.50x0.40F	WH/RD	0.35	TESLA	MAT-110-130	X0034	58
40	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X0010	72
41	unused
42	unused
43	BOSCH	1928499468	0.50x0.40F	PK/RD	0.35	TESLA	MAT-110-130	X0034	42
44	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X0034	41
45	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X0010	2
46	BOSCH	1928499468	0.50x0.40F	VT/RD	0.35	TESLA	MAT-110-130	X0010	23
47	unused
48	unused
49	unused
50	unused
51	BOSCH	1928499468	0.50x0.40F	GN/RD	0.35	TESLA	MAT-110-130	X0010	60
52	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X0010	59
