X0806

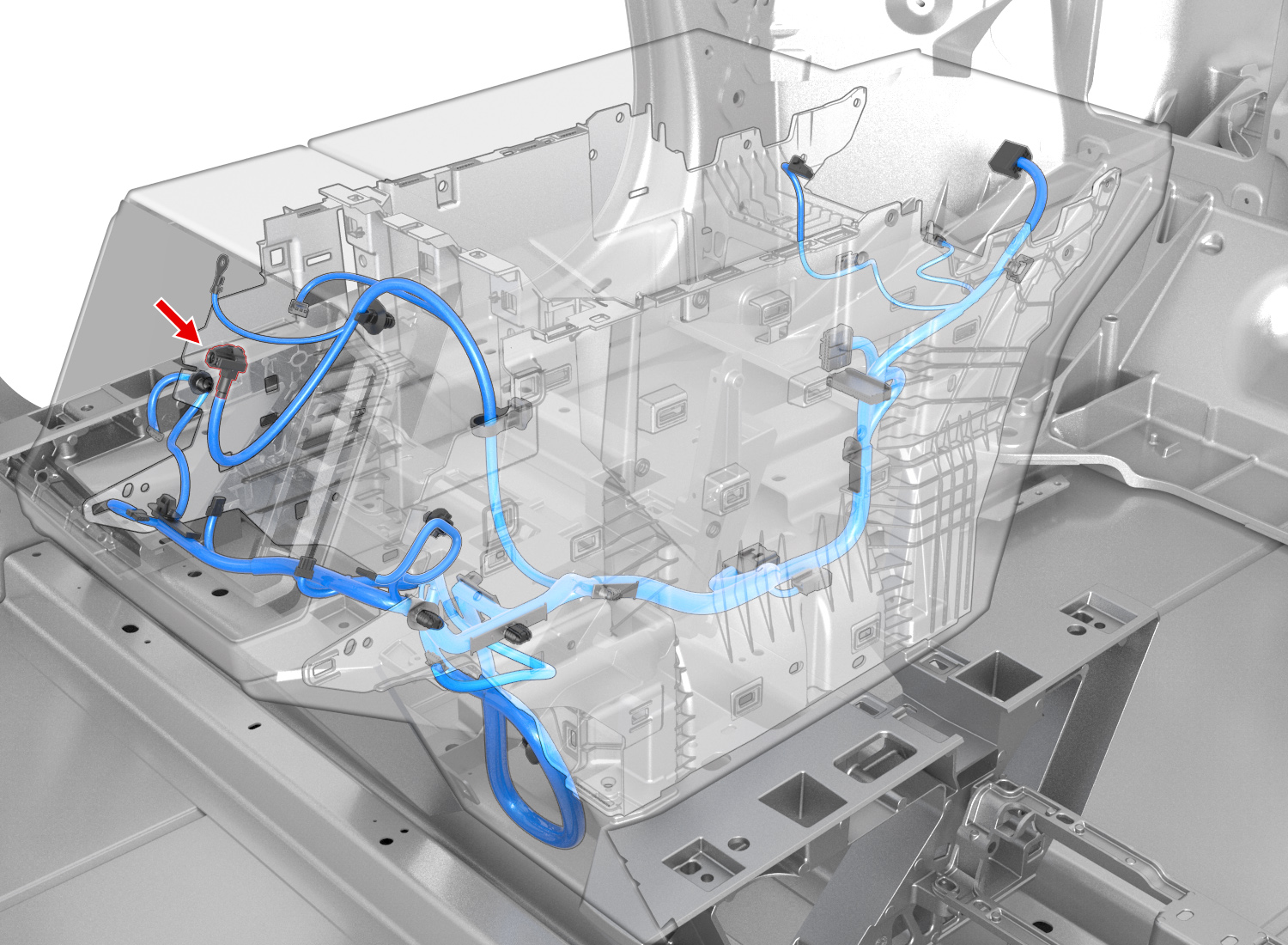

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| H | TESLA | PIA-HSD-TERM | BK | Q1020 | X0879M | H | |||
| 1 | AMP | 5-963715-1 | 0.63x0.63F | RD | 0.50 | X0879M | 1 | ||
| 2 | AMP | 5-963715-1 | 0.63x0.63F | BN | 0.50 | X0879M | 2 |
