Head Unit - Audio System

FRT No: 17271602

    Remove

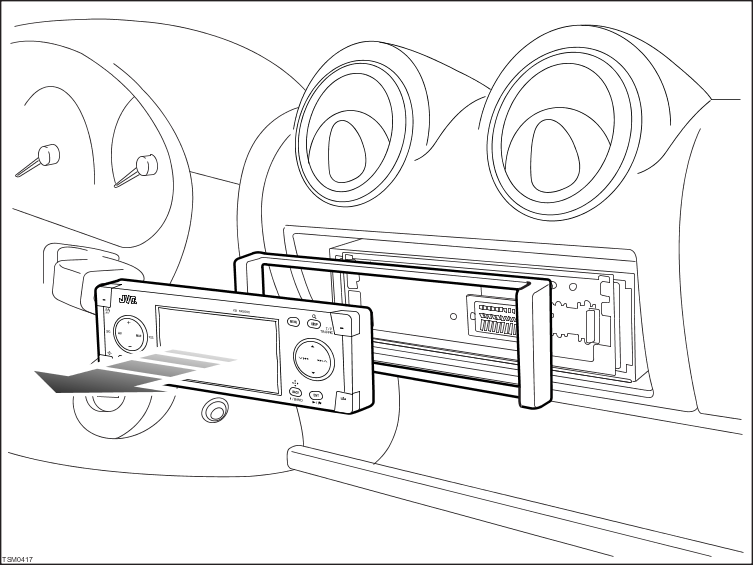

  1. Remove face plate from head unit.


  2. Release face plate surround from head unit and remove.

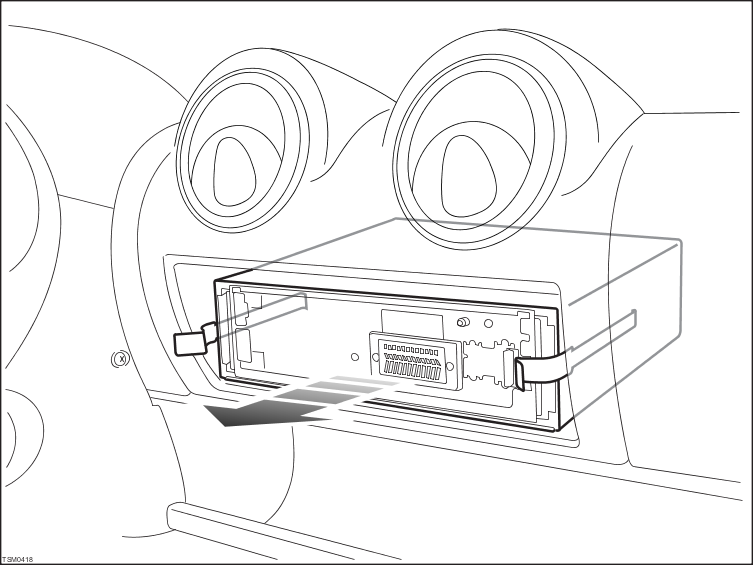

  3. Insert removal tools into slots between head unit and cage in dash. An audible click will be heard when the tools have correctly engaged on the side of the head unit.


  4. Withdraw the head unit from the dash.

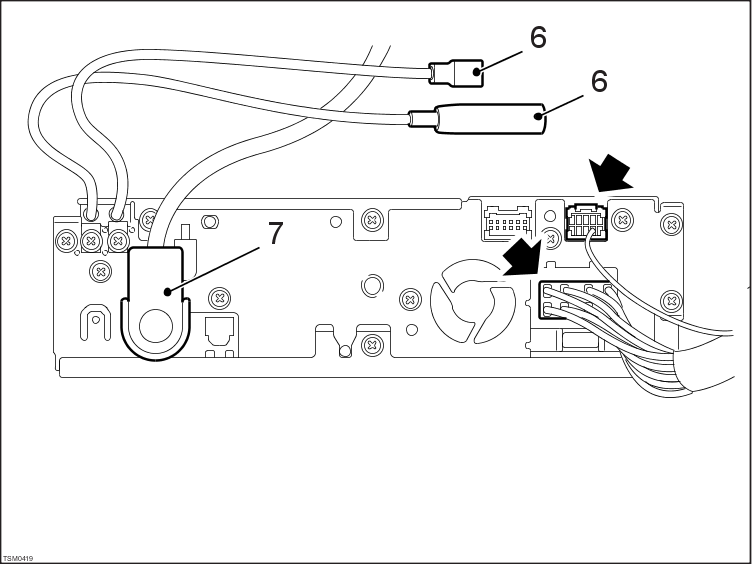

  5. Disconnect harness connectors (x2) from rear of head unit.


  6. Disconnect radio and GPS antenna cables.

  7. Disconnect serial interface cable from rear of head unit.

  8. Remove audio system head unit.

    Installation


  1. Installation procedure is reverse of removal.
