Mounting - Power Train - RH

FRT No: 40011202

    Remove


  1. Remove power train assembly (refer to procedure).

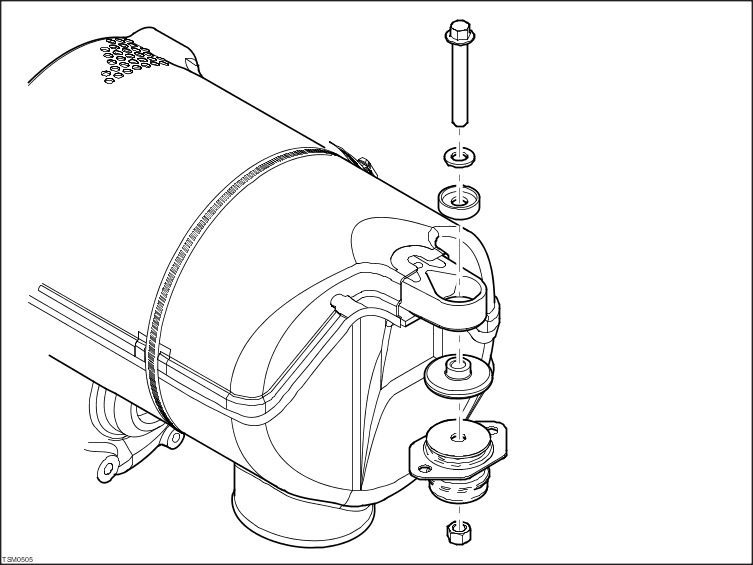

  2. Remove nut and bolt securing mounting to motor (torque - 70 Nm).


  3. Remove mounting, collect washers and spacer.

    Installation


  1. Installation procedure is reverse of removal except for the following.

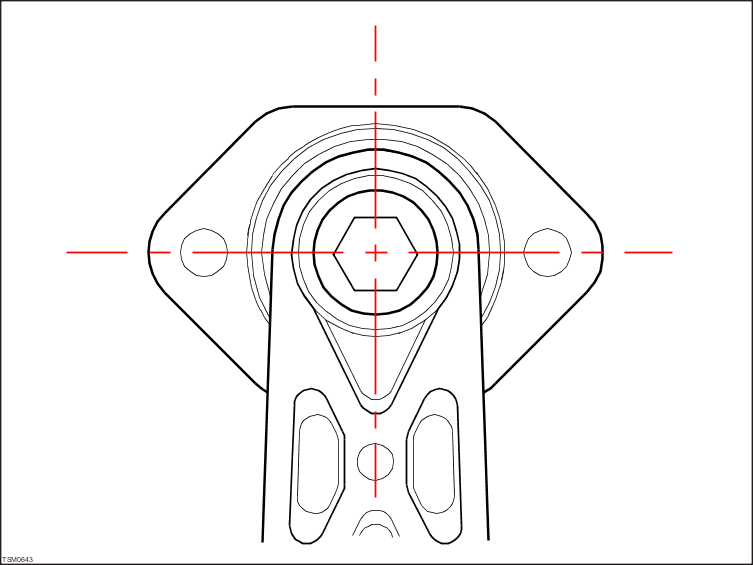

  2. The power train mounting bush should be installed so that the subframe mounting holes are located perpendicular to the bell end casting.
