G10 Insulator Ring

FRT No: 40011402

    Remove


  1. Separate motor from transmission (refer to procedure).

  2. Remove insulator ring from motor.

    Installation


  1. Installation procedure is reverse of removal except for the following.
    2. CAUTION: Clean and inspect the insulator ring for signs of damage before installing. Never use a damaged insulator ring.



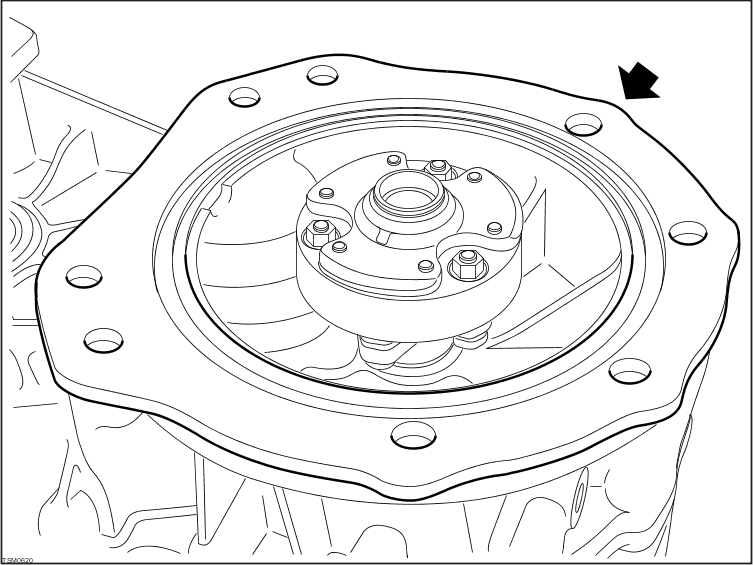

  2. Position insulator ring so that the side with the groove is facing upwards to locate on the machined flange of the motor.
